HD3-6408-9Z - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The HD-6408 is a CMOS/LSI Manchester Encoder/Decoder for creating a very high speed asynchronous serial data bus. The Encoder converts serial NRZ data (typically from a shift register) to Manchester II encoded data, adding a sync pulse and parity bit. The Decoder recognizes this sync pulse and identifies it as a Command Sync or a Data Sync. The data is then decoded and shifted out in NRZ code (typically into a shift register). Finally,

Download HD3-6408-9Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

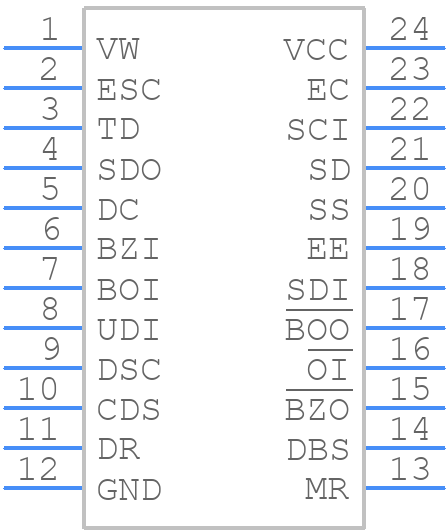

HD3-6408-9Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

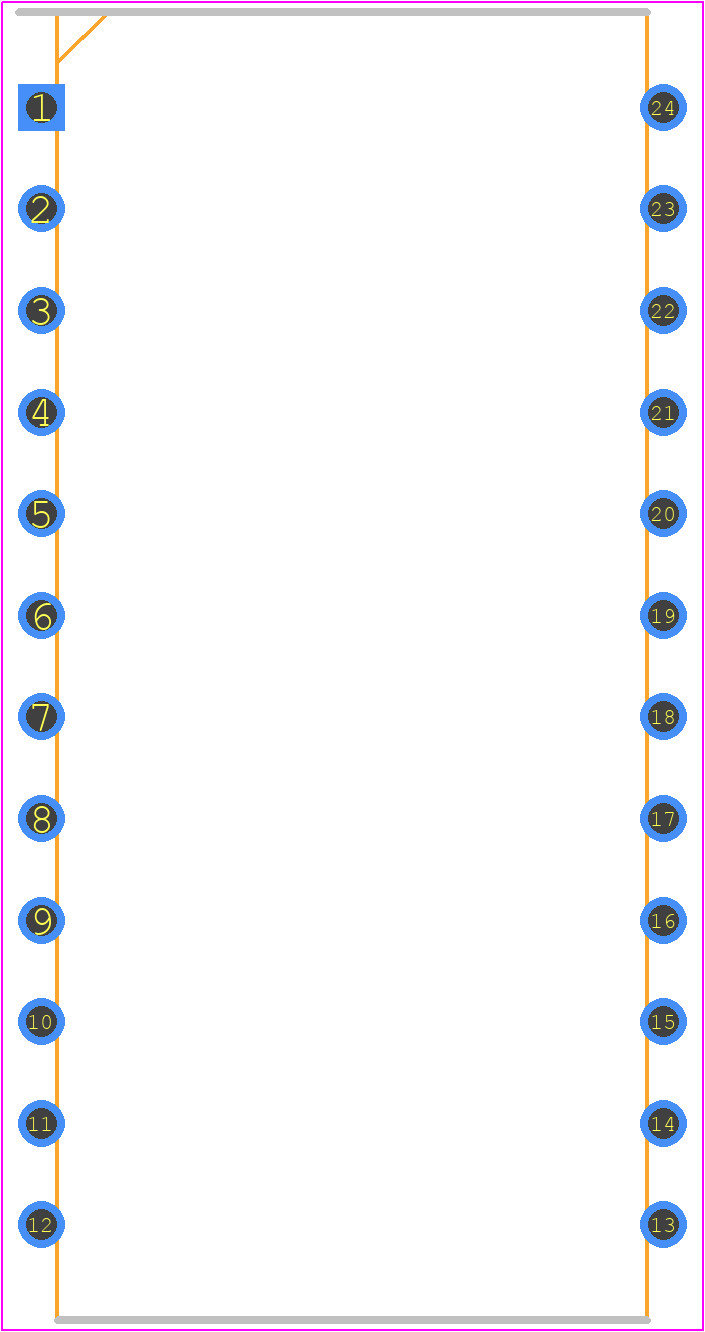

HD3-6408-9Z - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E24.6
click to zoom
3D Models
HD3-6408-9Z - Renesas Electronics - 3D model - Dual-In-Line Packages - E24.6
click to zoom

HD3-6408-9Z Details

  • Manufacturer Part Number:

    HD3-6408-9Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Pin Count:

    24

  • Manufacturer Package Code:

    E24.6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Packing Method:

    TUBE

  • Terminal Finish:

    MATTE TIN

HD3-6408-9Z Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The datasheet provides guidelines for selecting the current sense resistor value.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 7V. Exceeding this voltage may damage the device.
  • Renesas provides EMC design guidelines in their application note, including recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI).
  • The recommended operating temperature range for the HD3-6408-9Z is -40°C to 125°C. However, the device can operate up to 150°C with derating. Consult the datasheet for derating guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HD3-6408-9Z Overview

Use the download button to access the HD3-6408-9Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD3-6, or try a keyword search, such as Other Logic ICs
