HD6417014RF28V - Renesas Electronics

HD6417014RF28V Details

• Manufacturer Part Number:

  HD6417014RF28V

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

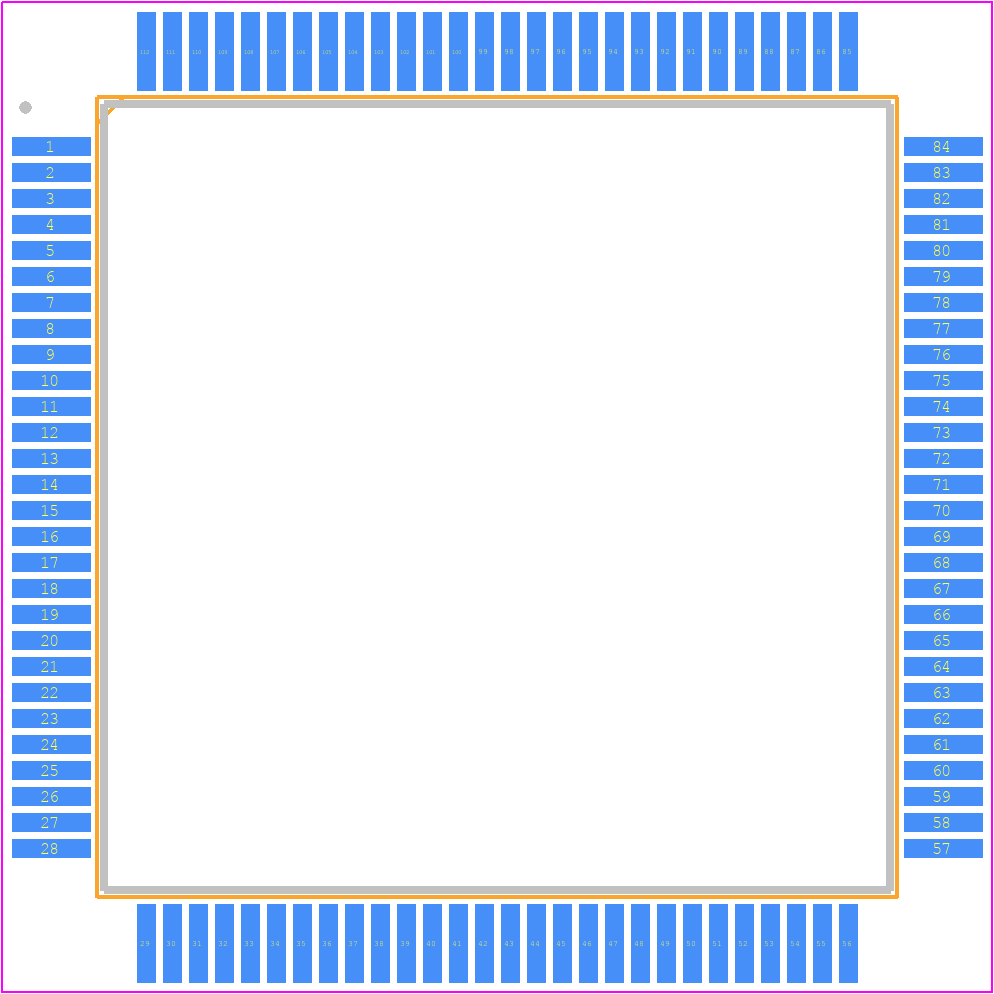

  20 X 20 MM, 0.65 MM PITCH, PLASTIC, QFP-112

• Pin Count:

  112

• Manufacturer Package Code:

  PRQP0112JA

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  22

• Bit Size:

  32

• Clock Frequency-Max:

  10 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G112

• JESD-609 Code:

  e6

• Length:

  20 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  43

• Number of Terminals:

  112

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.05 mm

• Speed:

  28.7 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
