HD6417034AF20V - Renesas Electronics

HD6417034AF20V Details

• Manufacturer Part Number:

  HD6417034AF20V

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  QFP

• Package Description:

  QFP-112

• Pin Count:

  112

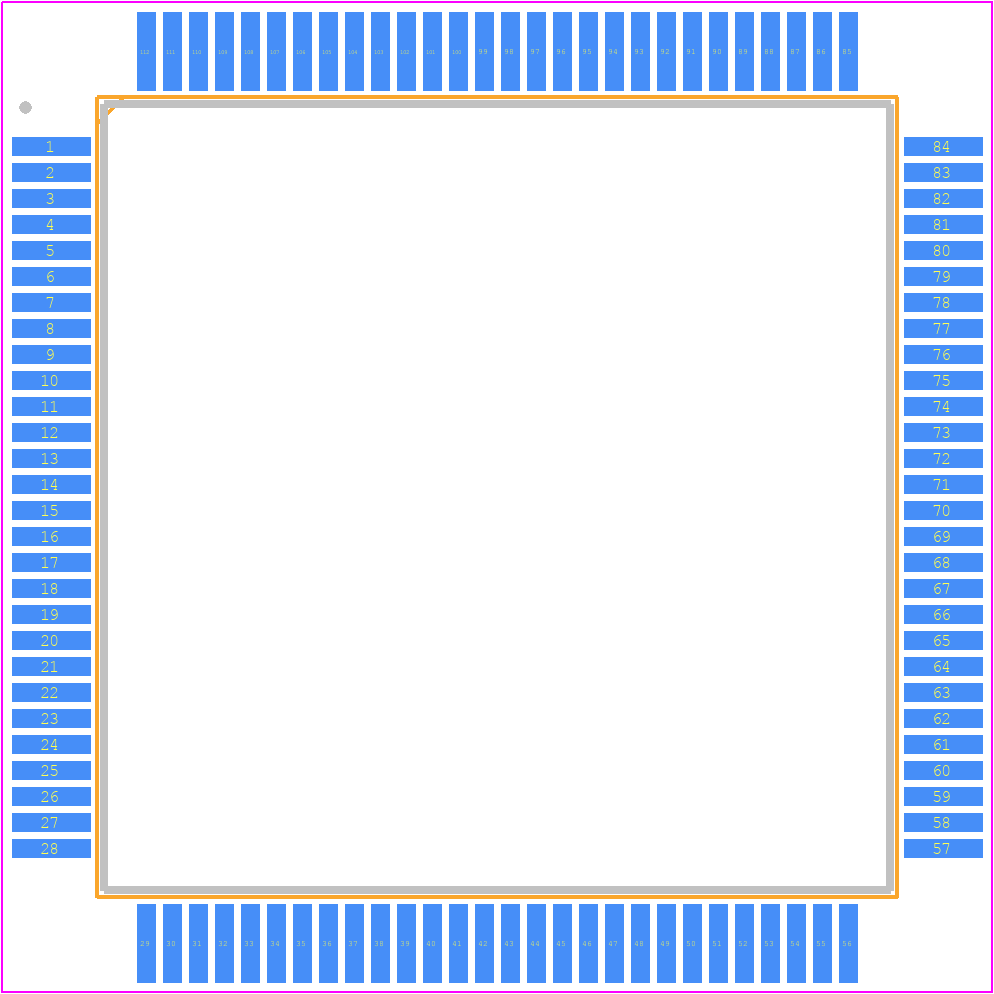

• Manufacturer Package Code:

  PRQP0112JA

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• Has ADC:

  YES

• Address Bus Width:

  22

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  SUPERH

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G112

• Length:

  20 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  4

• Number of External Interrupts:

  9

• Number of I/O Lines:

  40

• Number of Serial I/Os:

  2

• Number of Terminals:

  112

• Number of Timers:

  1

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP112,.91SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  4096

• ROM (words):

  0

• Seated Height-Max:

  3.05 mm

• Speed:

  20 MHz

• Supply Current-Max:

  130 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
