HD6417727BP160CV - Renesas Electronics

HD6417727BP160CV Details

• Manufacturer Part Number:

  HD6417727BP160CV

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LFBGA

• Package Description:

  CSP-240

• Pin Count:

  240

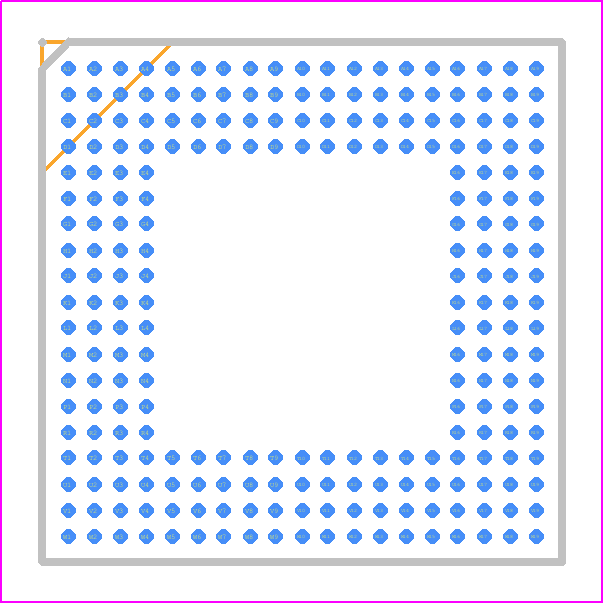

• Manufacturer Package Code:

  PLBG0240JA

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  36 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  66.67 MHz

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B240

• Length:

  13 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  4

• Number of External Interrupts:

  6

• Number of Serial I/Os:

  3

• Number of Terminals:

  240

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA240,19X19,25

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (words):

  16384

• Seated Height-Max:

  1.4 mm

• Speed:

  160 MHz

• Supply Current-Max:

  650 mA

• Supply Voltage-Max:

  2.05 V

• Supply Voltage-Min:

  1.7 V

• Supply Voltage-Nom:

  1.9 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Width:

  13 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
