HD6417750F167V - Renesas Electronics

Description: Renesas Electronics HD6417750F167V, 32bit SH-4 Microcontroller, 167MHz, 208-Pin QFP

Download HD6417750F167V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HD6417750F167V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

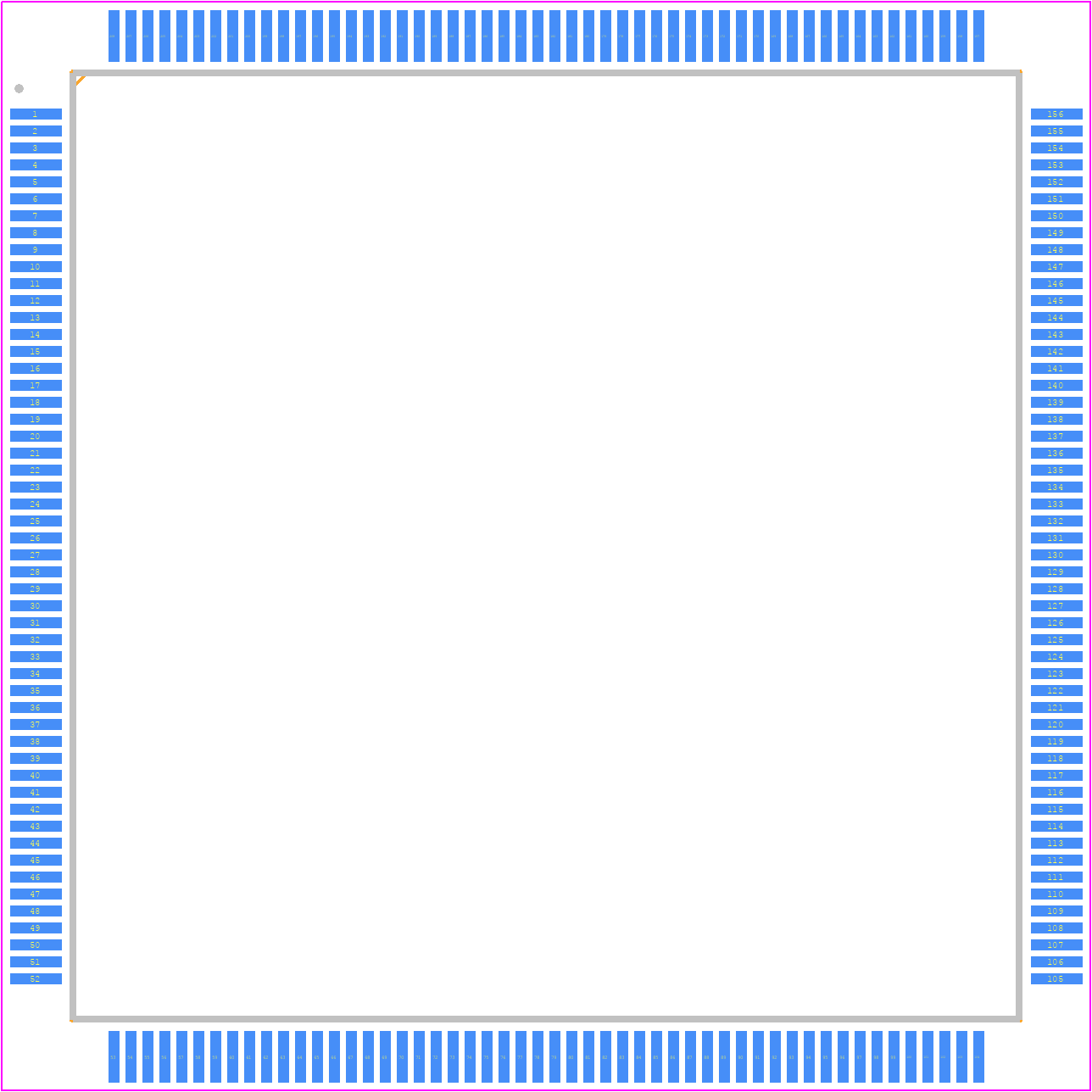

HD6417750F167V - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0208KJ-A
click to zoom
3D Models
HD6417750F167V - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0208KJ-A
click to zoom

HD6417750F167V Details

  • Manufacturer Part Number:

    HD6417750F167V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFP

  • Package Description:

    QFP-208

  • Pin Count:

    208

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    34 MHz

  • External Data Bus Width:

    64

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G208

  • Length:

    28 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    208

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Seated Height-Max:

    3.56 mm

  • Speed:

    167 MHz

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

HD6417750F167V Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HD6417750F167V is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for the HD6417750F167V can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings and bit configurations.
  • The maximum clock frequency supported by the HD6417750F167V is 16 MHz, using an external clock source.
  • The built-in ADC on the HD6417750F167V can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). Refer to the datasheet for specific register settings and conversion procedures.
  • The Watchdog Timer (WDT) on the HD6417750F167V is used to detect and recover from system failures or hangs. It can be configured to generate a reset signal if the system fails to refresh the WDT within a specified time period.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HD6417750F167V Overview

Use the download button to access the HD6417750F167V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HD641, or try a keyword search, such as Microprocessors
