HD6417750RX200V - Renesas Electronics

Description: The SH7750R is a 32-bit RISC (reduced instruction set computer) microprocessor, featuring object code upward-compatibility with SH-1, SH-2, and SH-3 microcomputers. It includes an instruction cache, an operand cache with a choice of copy-back or write-through mode, and an MMU (memory management unit) with a 64-entry fully-associative unified TLB (translation look aside buffer). The SH7750R has a 16-kbyte instruction cache and a 32-kbyte data cache. The SH7750R has an on-chip bus state controller (BSC) that

Download HD6417750RX200V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HD6417750RX200V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

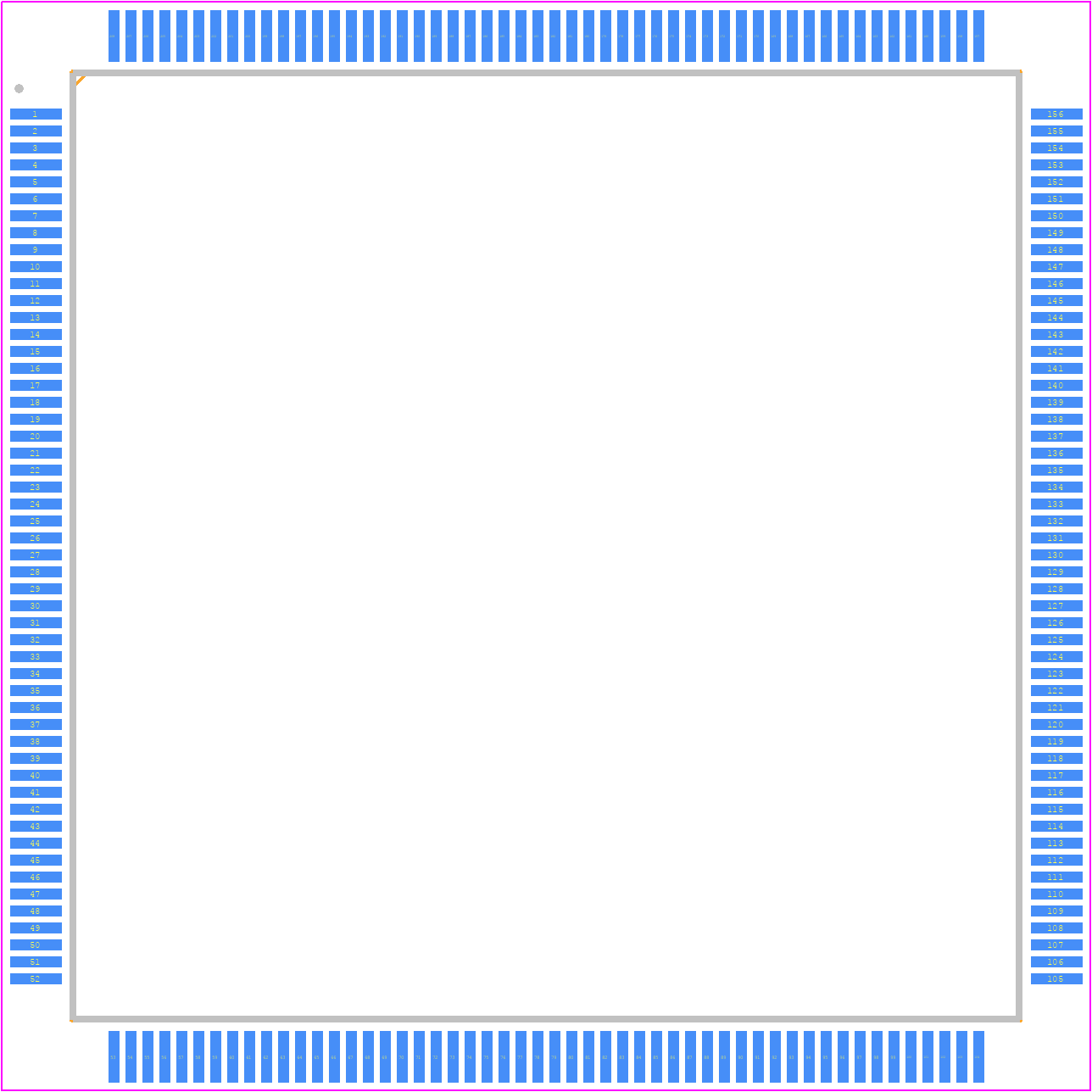

HD6417750RX200V - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0208KJ-A-
click to zoom
3D Models
HD6417750RX200V - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0208KJ-A-
click to zoom

HD6417750RX200V Details

  • Manufacturer Part Number:

    HD6417750RX200V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    HFQFP

  • Pin Count:

    208

  • Manufacturer Package Code:

    PRQP0208KJ

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

HD6417750RX200V Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HD6417750RX200V is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for the HD6417750RX200V can be configured using the Clock Control Register (CKCR) and the Clock Source Control Register (CSCR). Refer to the datasheet for specific register settings and bit configurations.
  • The maximum clock frequency supported by the HD6417750RX200V is 20 MHz, using an external clock source.
  • The built-in ADC on the HD6417750RX200V can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). Refer to the datasheet for specific register settings and conversion procedures.
  • The Watchdog Timer (WDT) on the HD6417750RX200V is used to detect and recover from system failures or hangs. It can be configured to generate a reset signal if the system fails to refresh the WDT within a specified time period.
