HD6417751RX240V - Renesas Electronics

HD6417751RX240V Details

• Manufacturer Part Number:

  HD6417751RX240V

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  HFQFP

• Package Description:

  QFP-256

• Pin Count:

  256

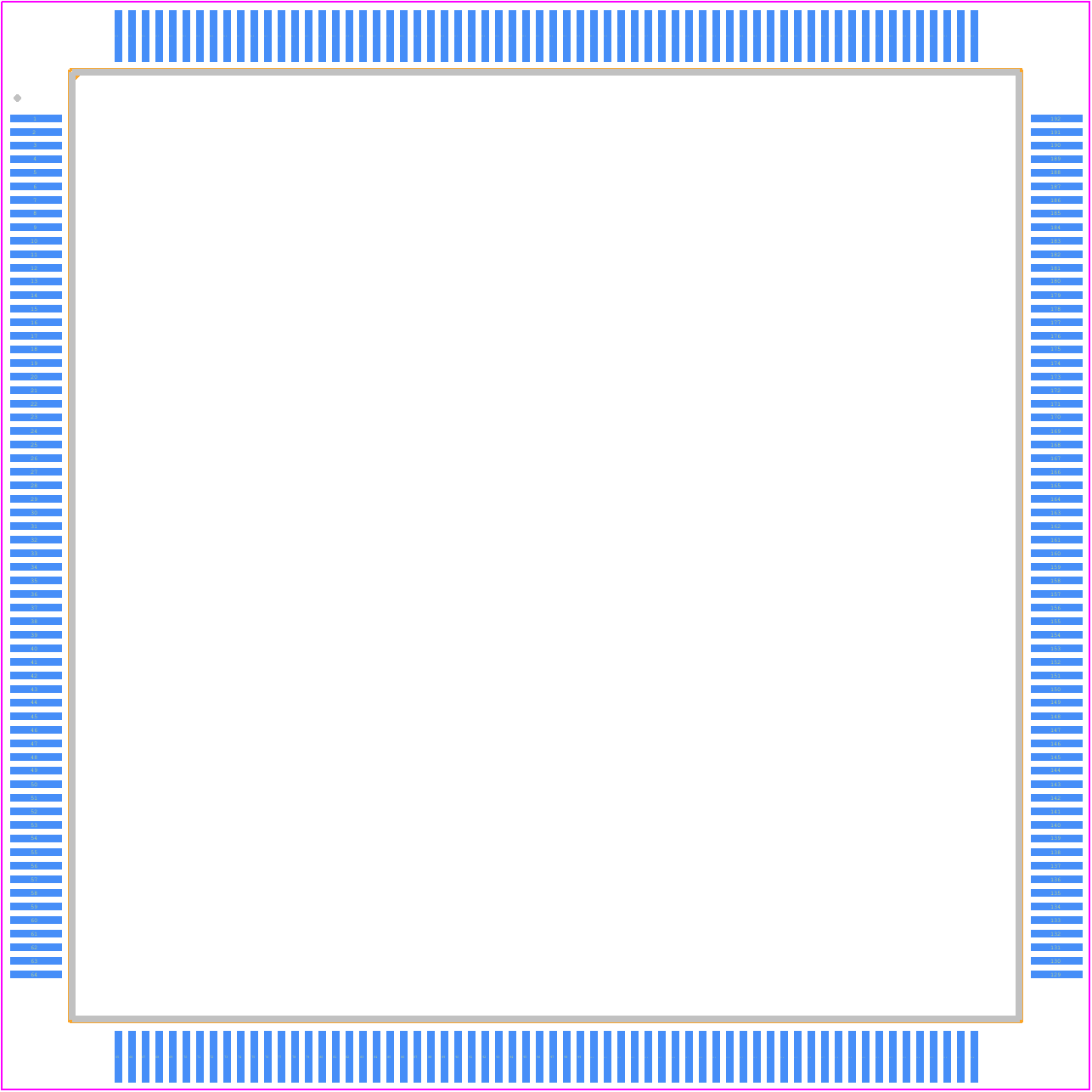

• Manufacturer Package Code:

  PRQP0256LC

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  NO

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  SH7751

• Clock Frequency-Max:

  34 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQFP-G256

• Length:

  28 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  8

• Number of External Interrupts:

  5

• Number of I/O Lines:

  16

• Number of Serial I/Os:

  2

• Number of Terminals:

  256

• Number of Timers:

  1

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Equivalence Code:

  QFP256,1.2SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, FINE PITCH

• ROM (words):

  0

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3.95 mm

• Speed:

  240 MHz

• Supply Current-Max:

  660 mA

• Supply Voltage-Max:

  1.6 V

• Supply Voltage-Min:

  1.5 V

• Supply Voltage-Nom:

  1.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
