HD6432375XXXFQ - Renesas Electronics

HD6432375XXXFQ Details

• Manufacturer Part Number:

  HD6432375XXXFQ

• Brand Name:

  Renesas

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  144

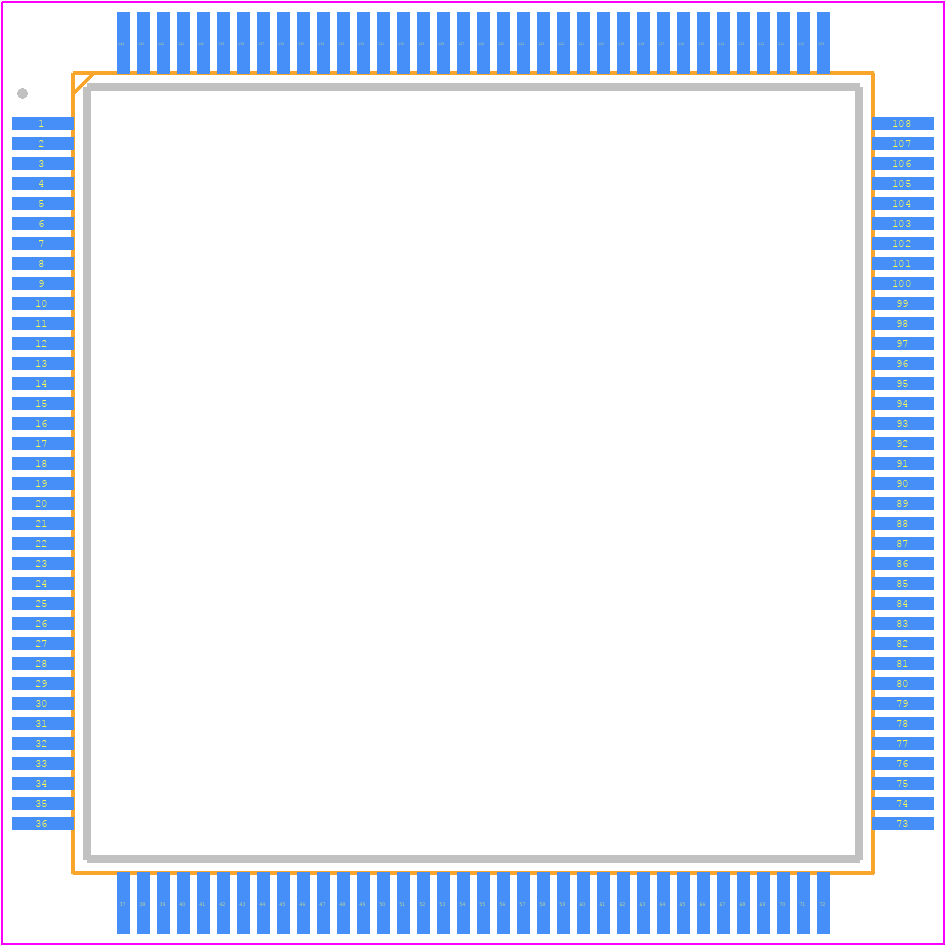

• Manufacturer Package Code:

  PLQP0144KC-A

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  6

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  16

• CPU Family:

  H8S/2000

• Clock Frequency-Max:

  25 MHz

• DMA Channels:

  YES

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G144

• Length:

  20 mm

• Number of I/O Lines:

  96

• Number of Terminals:

  144

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP144,.87SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  16384

• ROM (words):

  262144

• ROM Programmability:

  MROM

• Speed:

  33 MHz

• Supply Current-Max:

  120 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
