HD64F2134FA20 - Renesas Electronics

HD64F2134FA20 Details

• Manufacturer Part Number:

  HD64F2134FA20

• Pbfree Code:

  No

• Part Life Cycle Code:

  Transferred

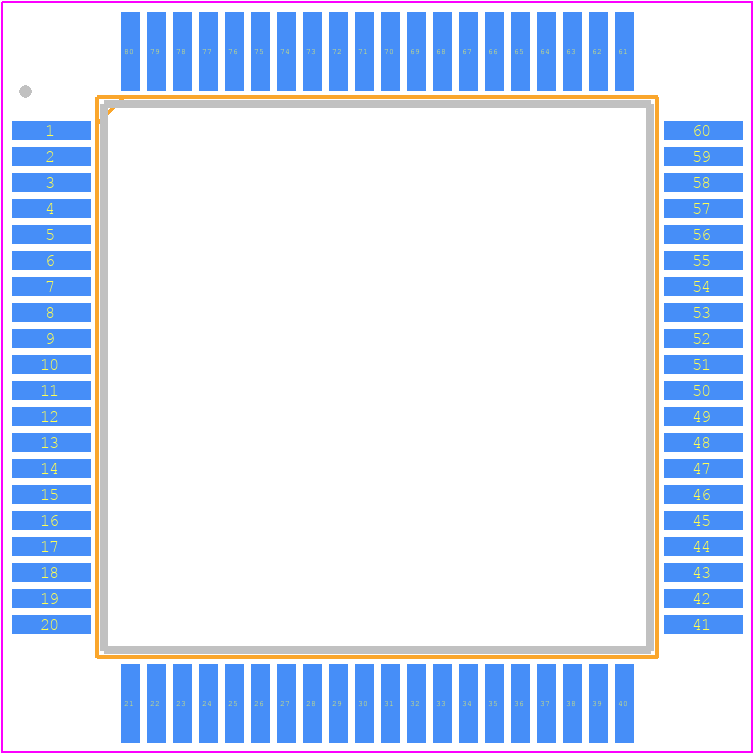

• Part Package Code:

  QFP

• Package Description:

  PLASTIC, QFP-80

• Pin Count:

  80

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7.85

• Has ADC:

  YES

• Address Bus Width:

  16

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  H8S/2000

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G80

• JESD-609 Code:

  e0

• Length:

  14 mm

• Number of I/O Lines:

  66

• Number of Terminals:

  80

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  4096

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3.05 mm

• Speed:

  20 MHz

• Supply Current-Max:

  85 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
