HD64F3067VFP - Renesas Electronics

Description: MCU

Download HD64F3067VFP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

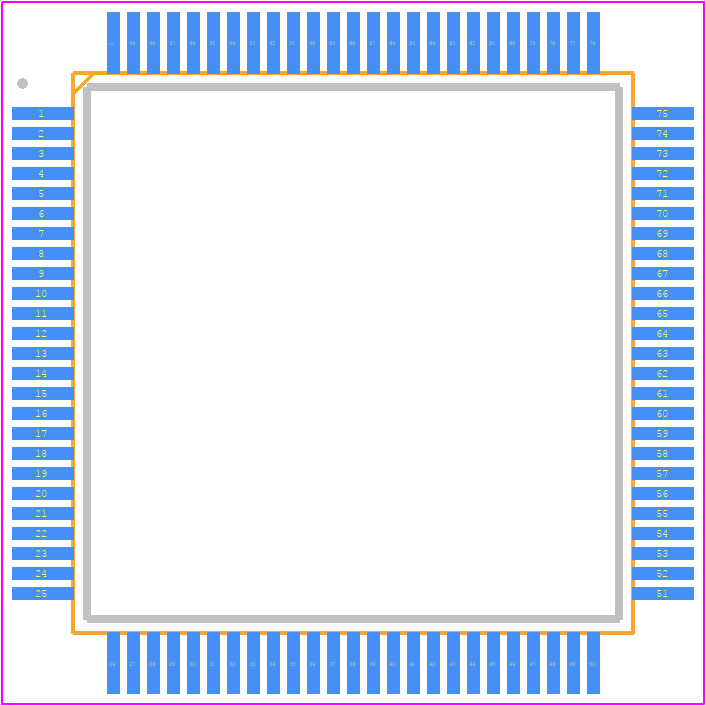

HD64F3067VFP - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - HD64F3067VFP_1
click to zoom
3D Models
HD64F3067VFP - Renesas Electronics  - 3D model - Quad Flat Packages - HD64F3067VFP_1
click to zoom

HD64F3067VFP Details

  • Manufacturer Part Number:

    HD64F3067VFP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Part Package Code:

    QFP

  • Package Description:

    QFP-100

  • Pin Count:

    100

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    R-PQFP-G100

  • JESD-609 Code:

    e6

  • Length:

    20 mm

  • Number of I/O Lines:

    79

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    3.1 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
