HD64F36049GHV - Renesas Electronics

Description: Renesas Electronics HD64F36049GHV, 16/32bit H8/300H Microcontroller, 20MHz, 96 kB Flash, 80-Pin PQFP

Download HD64F36049GHV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

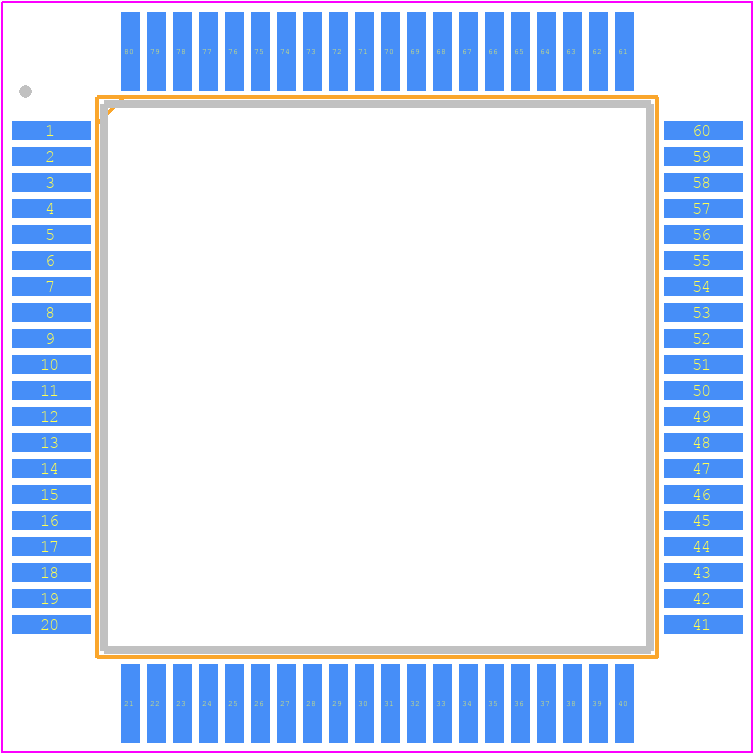

HD64F36049GHV - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - (FP-80A)
click to zoom
3D Models
HD64F36049GHV - Renesas Electronics  - 3D model - Quad Flat Packages - (FP-80A)
click to zoom

HD64F36049GHV Details

  • Manufacturer Part Number:

    HD64F36049GHV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    QFP-80

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    H8/300

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    4

  • Number of I/O Lines:

    67

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    80

  • Number of Timers:

    4

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP80,.68SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    4096

  • ROM (words):

    98304

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    3.05 mm

  • Speed:

    20 MHz

  • Supply Current-Max:

    36 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
