HD64F3664BP - Renesas Electronics

HD64F3664BP Details

• Manufacturer Part Number:

  HD64F3664BP

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

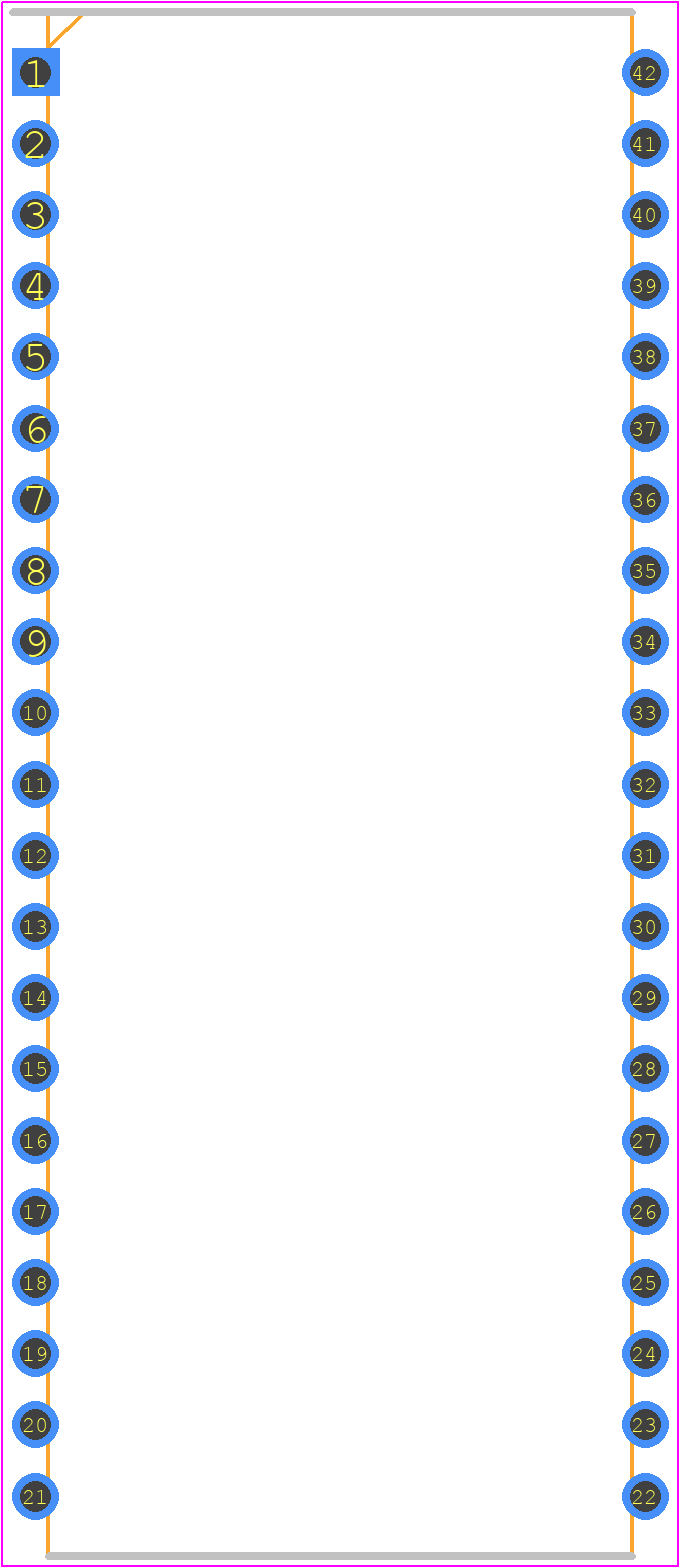

• Package Description:

  14 X 37.30 MM, 1.78 MM PITCH, SDIP-42

• Pin Count:

  42

• Manufacturer Package Code:

  PRDP0042BB

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 3V MINIMUM SUPPLY @ 1 MHZ

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  H8/300H

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDIP-T42

• JESD-609 Code:

  e0

• Length:

  37.3 mm

• Number of I/O Lines:

  31

• Number of Terminals:

  42

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP42,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2048

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  5.1 mm

• Speed:

  16 MHz

• Supply Current-Max:

  22.5 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
