HD64F3664FYV - Renesas Electronics

Description: Renesas 16-Bit Single-Chip Microcomputer H8 Family/H8/300H Tiny Series

Download HD64F3664FYV Model

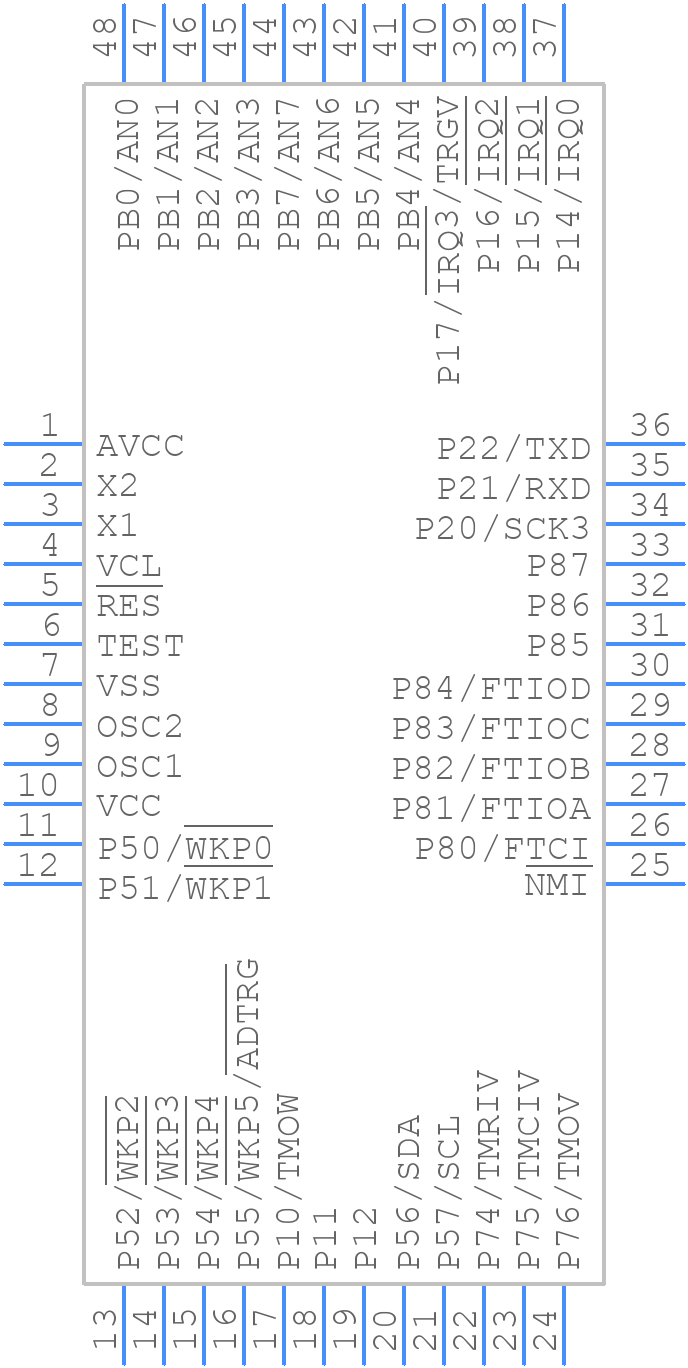

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HD64F3664FYV - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - FP-48B-1
click to zoom
3D Models
HD64F3664FYV - Renesas Electronics  - 3D model - Quad Flat Packages - FP-48B-1
click to zoom

HD64F3664FYV Details

  • Manufacturer Part Number:

    HD64F3664FYV

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, 0.5 MM PITCH, LQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    1

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 3V MINIMUM SUPPLY @ 1 MHZ

  • Bit Size:

    16

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e6

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    37

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

HD64F3664FYV Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HD64F3664FYV is 4.5V to 5.5V, with a typical voltage of 5V.
  • The clock settings for the HD64F3664FYV can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register settings and bit assignments.
  • The HD64F3664FYV supports a maximum clock frequency of 16 MHz.
  • The HD64F3664FYV has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCSR). Refer to the datasheet for specific register settings and bit assignments.
  • The VCC pin is the power supply pin for the HD64F3664FYV and should be connected to a stable 5V power source.
