HD64F3687HV - Renesas Electronics

Description: The H8/3687 Group is supported only for customers who have already adopted these products. The RL78/G14 Group is recommended for new designs.

Download HD64F3687HV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

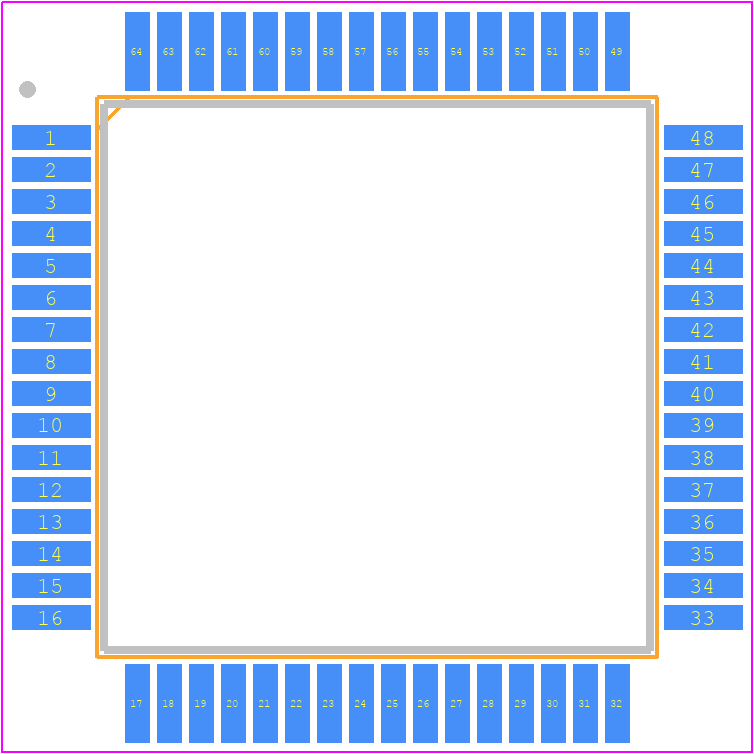

HD64F3687HV - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-QFP64-14x14-0.80
click to zoom
3D Models
HD64F3687HV - Renesas Electronics  - 3D model - Quad Flat Packages - P-QFP64-14x14-0.80
click to zoom

HD64F3687HV Details

  • Manufacturer Part Number:

    HD64F3687HV

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFP

  • Package Description:

    14 X 14 MM, 0.80 MM PITCH, QFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    PRQP0064GB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    1

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 3V MINIMUM SUPPLY

  • Bit Size:

    16

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e6

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    53

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    3.05 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

HD64F3687HV Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
  • During reset, the JTAG interface should be tri-stated to prevent unwanted data from being shifted into the device. This can be achieved by pulling up the TMS pin and holding the TCK pin low.
  • The maximum allowed capacitance on the VCC pin is 10uF. Exceeding this value may cause voltage regulator instability and affect the device's performance.
  • Yes, the HD64F3687HV is designed to operate in harsh environments with temperatures ranging from -40°C to 125°C. However, it's essential to ensure proper thermal management and follow the recommended operating conditions to prevent overheating.
  • The HD64F3687HV has a built-in watchdog timer that can be enabled and configured using the WDTCSR register. The watchdog timer can be used to detect and recover from system failures or hangs.
