HD64F3694GHV - Renesas Electronics

HD64F3694GHV Details

• Manufacturer Part Number:

  HD64F3694GHV

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  QFP

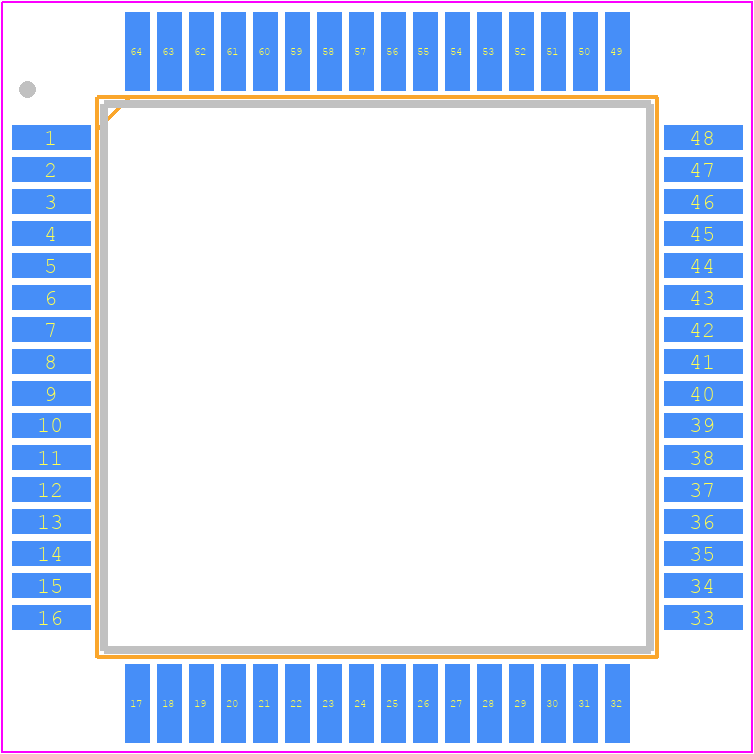

• Package Description:

  14 X 14 MM, 0.80 MM PITCH, PLASTIC, QFP-64

• Pin Count:

  64

• Manufacturer Package Code:

  PRQP0064GB

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 3 V MINIMUM SUPPLY @ 10 MHZ

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  H8/300H

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e6

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  37

• Number of Terminals:

  64

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP64,.66SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2048

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3.05 mm

• Speed:

  20 MHz

• Supply Current-Max:

  30 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
