HD64F7044F28V - Renesas Electronics

HD64F7044F28V Details

• Manufacturer Part Number:

  HD64F7044F28V

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  QFP

• Package Description:

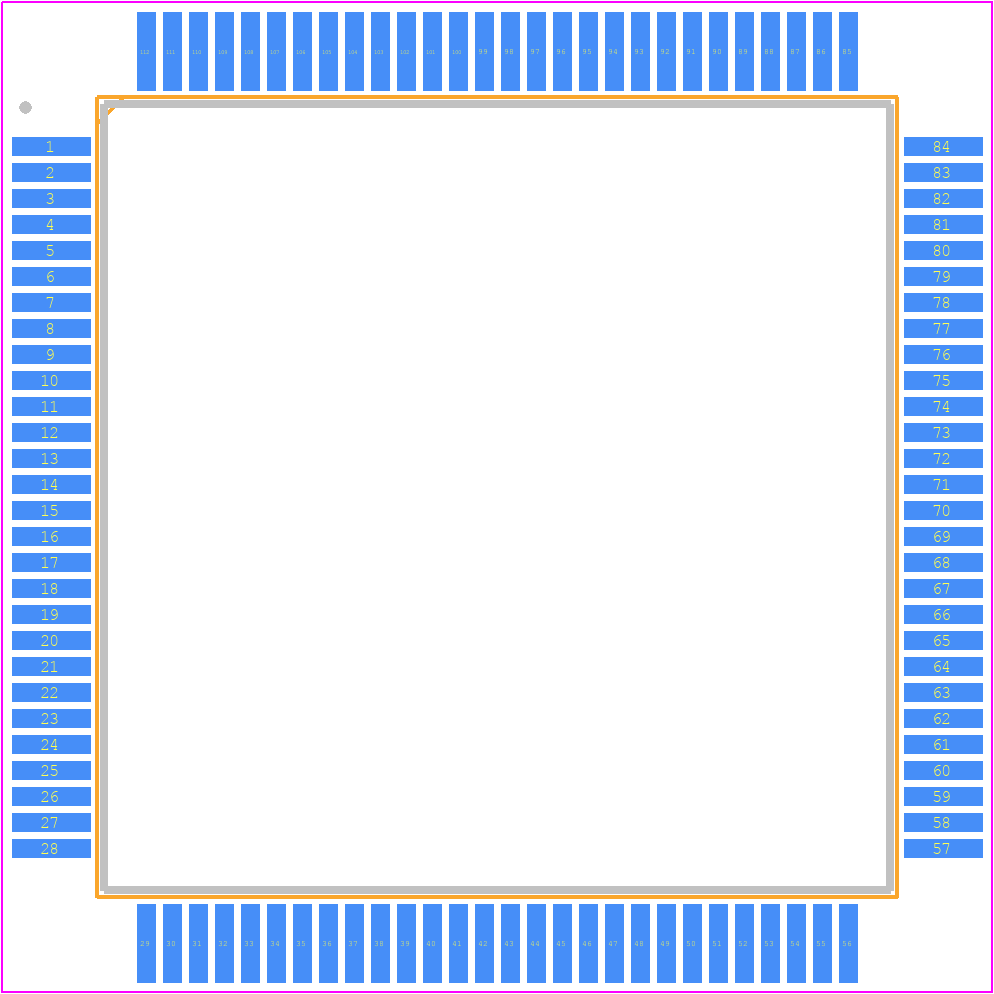

  20 X 20 MM, QFP-112

• Pin Count:

  112

• Manufacturer Package Code:

  PRQP0112JA

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• Has ADC:

  YES

• Address Bus Width:

  22

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  SH7000

• Clock Frequency-Max:

  28 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G112

• Length:

  20 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  82

• Number of Terminals:

  112

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP112,.91SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  4096

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3.05 mm

• Speed:

  28.7 MHz

• Supply Current-Max:

  230 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
