HD64F7065AF60V - Renesas Electronics

HD64F7065AF60V Details

• Manufacturer Part Number:

  HD64F7065AF60V

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LQFP

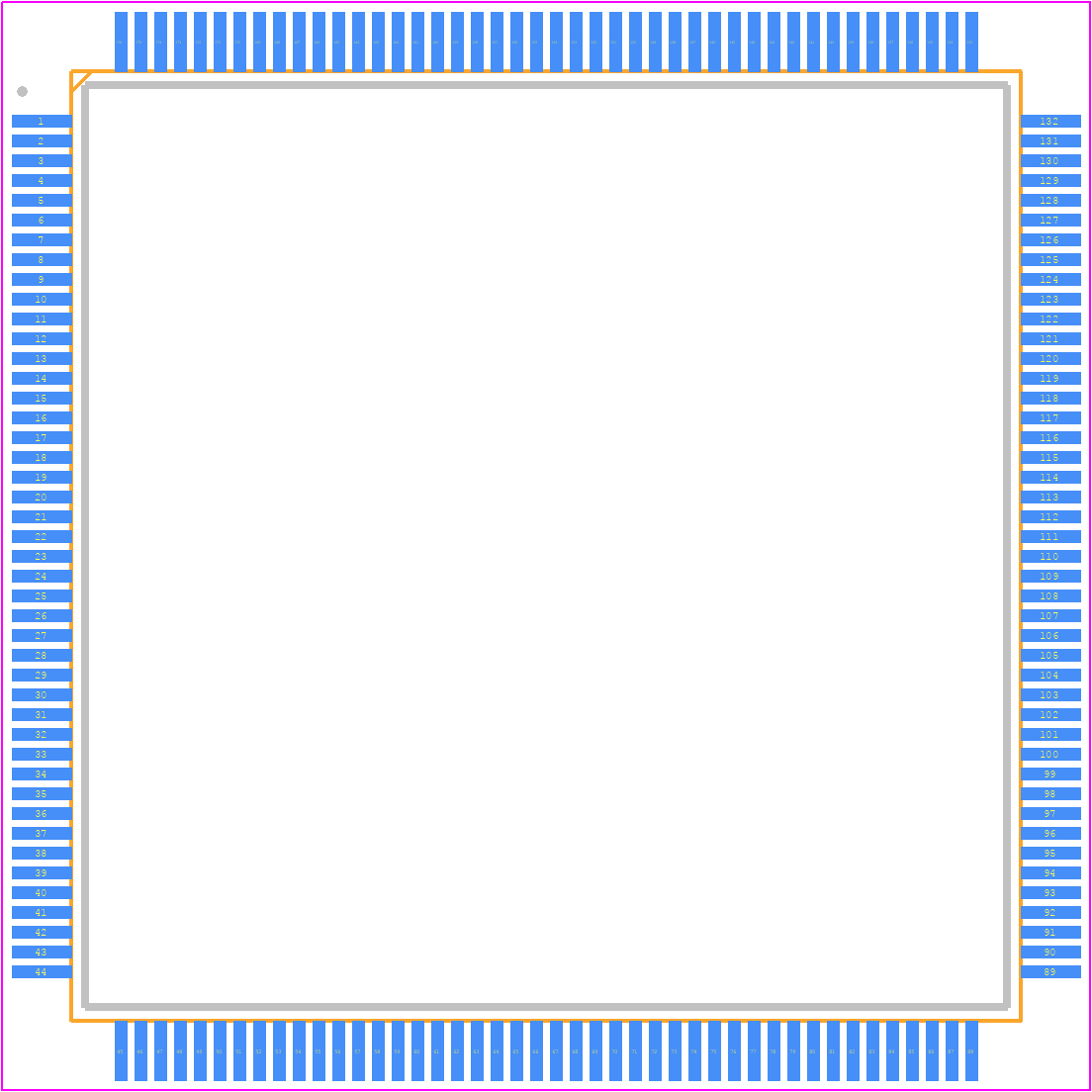

• Package Description:

  24 X 24 MM, 0.50 MM PITCH, PLASTIC, LQFP-176

• Pin Count:

  176

• Manufacturer Package Code:

  PLQP0176KC

• Country Of Origin:

  Japan

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  SH7000

• Clock Frequency-Max:

  60 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQFP-G176

• JESD-609 Code:

  e6

• Length:

  24 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  118

• Number of Terminals:

  176

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  8192

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.7 mm

• Speed:

  60 MHz

• Supply Voltage-Max:

  3.3 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
