The maximum operating frequency of the HD74LS08P is typically around 30-40 MHz, but it can vary depending on the specific application and operating conditions.
To ensure reliable operation of the HD74LS08P in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range.
The HD74LS08P is a 5V device, but it can be used in a 3.3V system with some limitations. However, the device's performance and functionality may be degraded, and it may not meet the specified parameters. It is recommended to use a level translator or a voltage regulator to ensure proper operation.
The propagation delay of the HD74LS08P is typically around 10-20 ns, depending on the specific application and operating conditions. To handle the propagation delay, it is recommended to use proper signal routing and layout techniques, and to consider the delay in the system design.
The HD74LS08P is a TTL (Transistor-Transistor Logic) device, and it is generally compatible with other TTL devices. However, it may not be directly compatible with other logic families, such as CMOS or ECL. Level translators or interface circuits may be required to ensure compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD74LS08P Overview

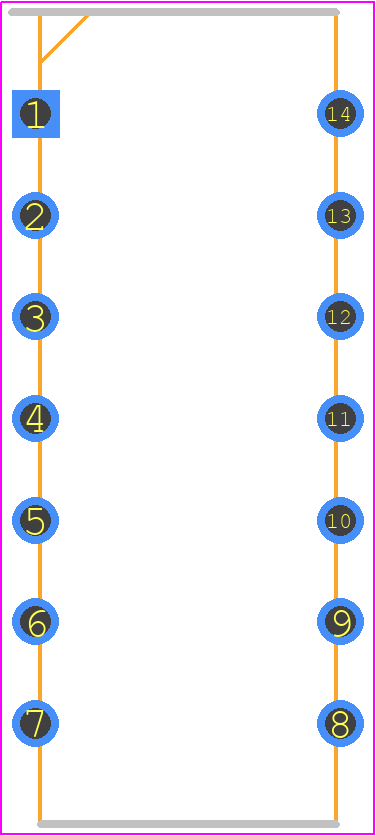

Use the download button to access the HD74LS08P schematic symbol and PCB footprint.
