HD74LS259P - HITACHI

HD74LS259P Details

• Manufacturer Part Number:

  HD74LS259P

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  DIP

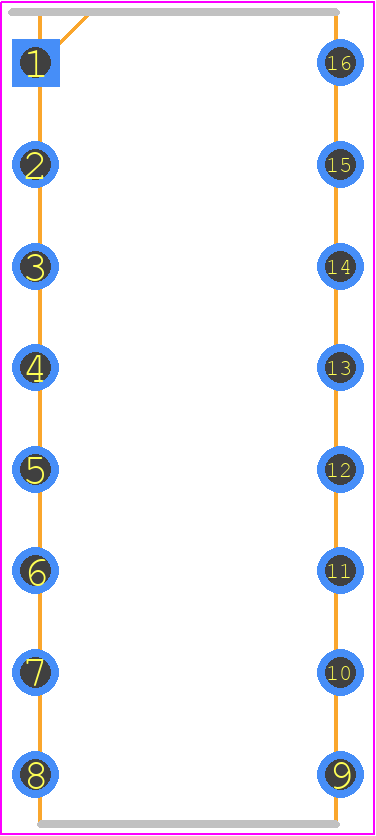

• Package Description:

  DP-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Hitachi Ltd

• Additional Feature:

  1:8 DMUX FOLLOWED BY LATCH; RESET ACTIVE ONLY WHEN LATCH ENABLE IS HIGH

• Family:

  LS

• JESD-30 Code:

  R-PDIP-T16

• Length:

  19.2 mm

• Logic IC Type:

  D LATCH

• Max I(ol):

  0.008 A

• Number of Bits:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  36 mA

• Prop. Delay@Nom-Sup:

  32 ns

• Propagation Delay (tpd):

  35 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.06 mm

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trigger Type:

  LOW LEVEL

• Width:

  7.62 mm
