HD74LS83AP - HITACHI

Description: 4-Bit Binary Full Adders

Download HD74LS83AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

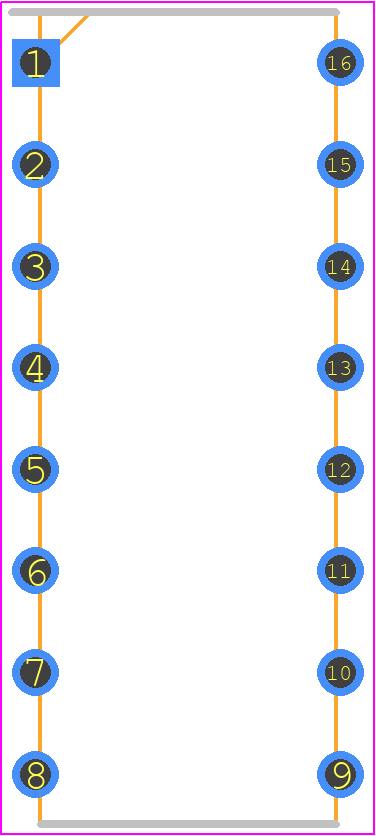

HD74LS83AP - HITACHI PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Dp-16
click to zoom
3D Models
HD74LS83AP - HITACHI  - 3D model - Dual-In-Line Packages - Dp-16
click to zoom

HD74LS83AP Details

  • Manufacturer Part Number:

    HD74LS83AP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    DIP

  • Package Description:

    DP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Hitachi Ltd

  • Additional Feature:

    FULL ADDER; WITH INTERNAL RIPPLE CARRY; CENTRE VCC AND GND; PERMITS RIPPLE CARRY CASCADING

  • Family:

    LS

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.2 mm

  • Logic IC Type:

    ADDER/SUBTRACTOR

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Propagation Delay (tpd):

    24 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.06 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

HD74LS83AP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the HD74LS83AP is 0°C to 70°C.
  • Yes, the HD74LS83AP is compatible with a 5V power supply, but it can also operate with a power supply voltage range of 4.5V to 5.5V.
  • The maximum clock frequency that the HD74LS83AP can handle is 30 MHz.
  • No, the HD74LS83AP does not have built-in input hysteresis. External hysteresis may be required depending on the application.
  • Yes, the HD74LS83AP is available in a lead-free package, which is RoHS compliant.
