HD74LS86P - Renesas Electronics

HD74LS86P Details

• Manufacturer Part Number:

  HD74LS86P

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Transferred

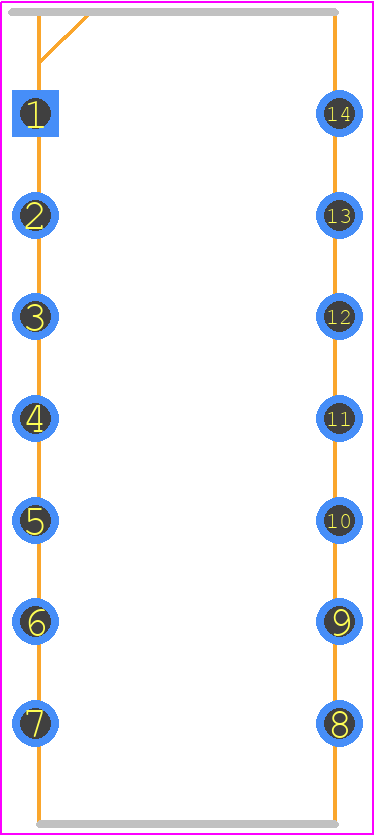

• Part Package Code:

  DIP

• Package Description:

  6.30 X 19.20 MM, 2.54 MM PITCH, PLASTIC, DIP-14

• Pin Count:

  14

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1986-11-01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  3

• Family:

  LS

• JESD-30 Code:

  R-PDIP-T14

• Length:

  19.2 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  XOR GATE

• Max I(ol):

  0.008 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Inputs:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  10 mA

• Prop. Delay@Nom-Sup:

  30 ns

• Propagation Delay (tpd):

  30 ns

• Qualification Status:

  Not Qualified

• Schmitt Trigger:

  NO

• Seated Height-Max:

  5.06 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
