The maximum clock frequency of the HD74LS93P is typically around 32 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the datasheet and consult with the manufacturer for specific guidance.
To ensure reliable operation of the HD74LS93P in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material, and keeping the device within its recommended operating temperature range (typically -40°C to 85°C).
The HD74LS93P is a 5V device, and it's not recommended to use it in a 3.3V system without proper level shifting or voltage regulation. Using the device outside its recommended voltage range can lead to unreliable operation or damage to the device.
To troubleshoot issues with the HD74LS93P's counter functionality, start by verifying the clock signal and ensuring it's within the recommended frequency range. Check the counter's reset and enable inputs, and verify that the device is properly powered and grounded. Use a logic analyzer or oscilloscope to monitor the device's outputs and inputs, and consult the datasheet and application notes for guidance.
Yes, the HD74LS93P is compatible with 5V TTL logic. It's a 5V device that uses TTL (Transistor-Transistor Logic) input and output levels, making it compatible with other 5V TTL devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HD74LS93P Overview

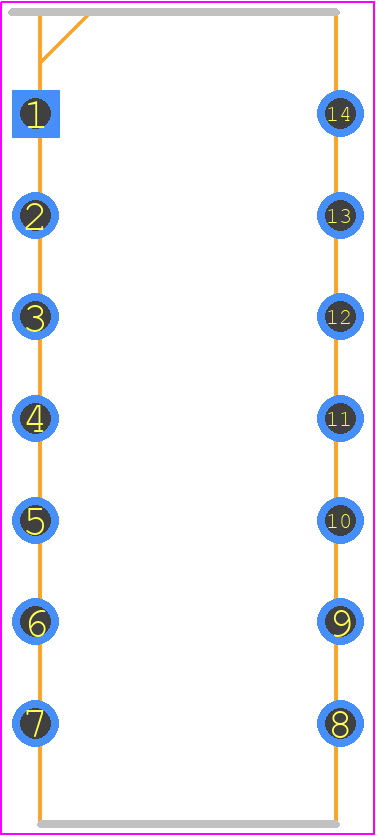

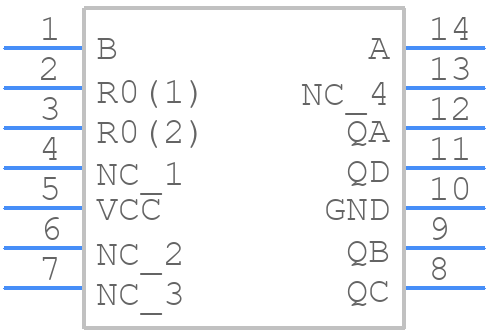

Use the download button to access the HD74LS93P schematic symbol, PCB footprint, and 3D model.
