HDAM-15-12.0-S-13-2-P - SAMTEC

Description: Board to Board & Mezzanine Connectors 2.00 mm x 1.20 mm HD Mezz Rugged, High-Density Open-Pin-Field Array Terminal

Download HDAM-15-12.0-S-13-2-P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HDAM-15-12.0-S-13-2-P - SAMTEC - PCB symbol
click to zoom
PCB Footprints

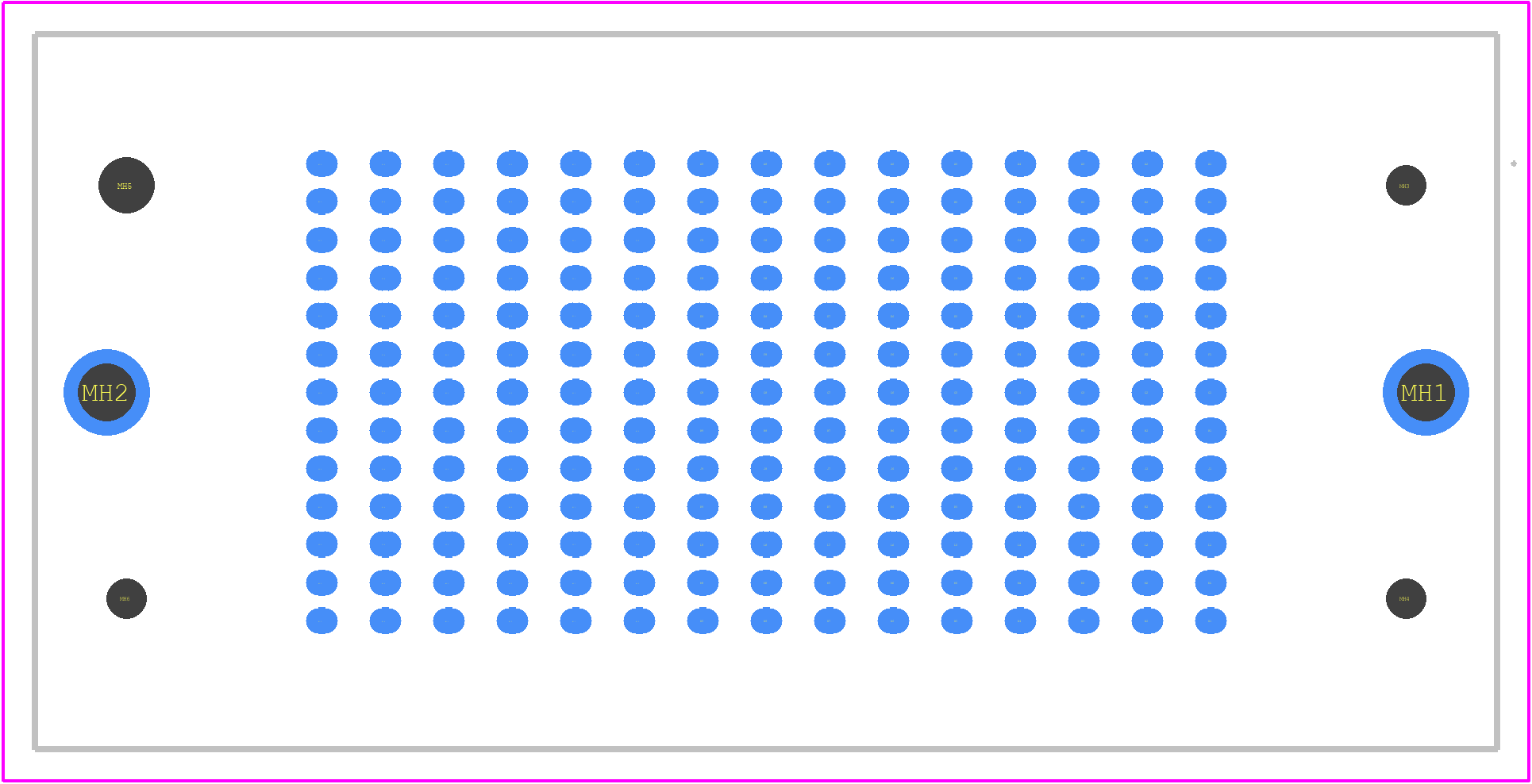

HDAM-15-12.0-S-13-2-P - SAMTEC PCB footprint - Other - Other - HDAM-15-12.0-S-13-2-P-4
click to zoom
3D Models
HDAM-15-12.0-S-13-2-P - SAMTEC - 3D model - Other - HDAM-15-12.0-S-13-2-P-4
click to zoom

HDAM-15-12.0-S-13-2-P Details

  • Manufacturer Part Number:

    HDAM-15-12.0-S-13-2-P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 4 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    13

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    195

HDAM-15-12.0-S-13-2-P Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the HDAM-15-12.0-S-13-2-P connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the HDAM-15-12.0-S-13-2-P connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable performance.
  • The maximum operating temperature for the HDAM-15-12.0-S-13-2-P connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
  • The HDAM-15-12.0-S-13-2-P connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for such applications.
  • The recommended mating cycle for the HDAM-15-12.0-S-13-2-P connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDAM-15-12.0-S-13-2-P Overview

Use the download button to access the HDAM-15-12.0-S-13-2-P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDAM-, or try a keyword search, such as Headers and Edge Type Connectors
