HDASE202YD-000 - Amphenol

Description: Rectangular MIL Spec Connectors

Download HDASE202YD-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HDASE202YD-000 - Amphenol - PCB symbol
click to zoom
PCB Footprints

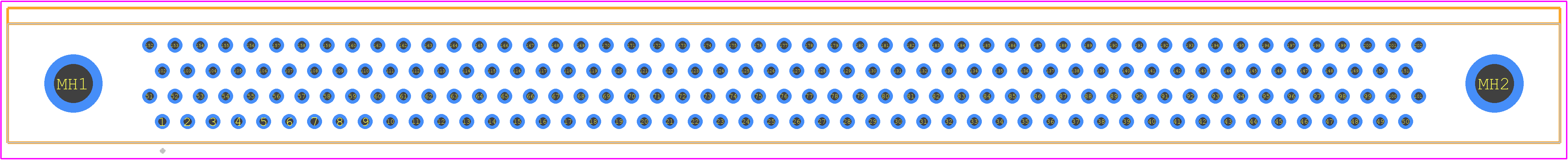

HDASE202YD-000 - Amphenol PCB footprint - Other - Other - HDASE202YD-000-5
click to zoom
3D Models
HDASE202YD-000 - Amphenol - 3D model - Other - HDASE202YD-000-5
click to zoom

HDASE202YD-000 Details

  • Manufacturer Part Number:

    HDASE202YD-000

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.905 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    202

HDASE202YD-000 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the HDASE202YD-000 is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-38999, which includes vibration testing. However, it's essential to follow proper installation and mounting procedures to ensure the connector's performance.
  • The operating temperature range for the HDASE202YD-000 is -65°C to 200°C (-85°F to 392°F). This range is suitable for most aerospace and defense applications, but it's crucial to verify the temperature range for your specific use case.
  • Yes, the HDASE202YD-000 is designed to withstand harsh environments, including exposure to salt spray and moisture. It meets the requirements of MIL-DTL-38999, which includes testing for salt spray and moisture resistance.
  • The HDASE202YD-000 is designed to be compatible with other manufacturers' mating connectors that meet the MIL-DTL-38999 standard. However, it's essential to verify compatibility and perform testing to ensure proper mating and performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDASE202YD-000 Overview

Use the download button to access the HDASE202YD-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDASE, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
