Part Image

HDB-M4-120M245X - Amphenol

Description: Rectangular MIL Spec Connectors 120 Pin Mother Board PCB Strt, Tin Plt

Download HDB-M4-120M245X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HDB-M4-120M245X - Amphenol - PCB symbol
click to zoom

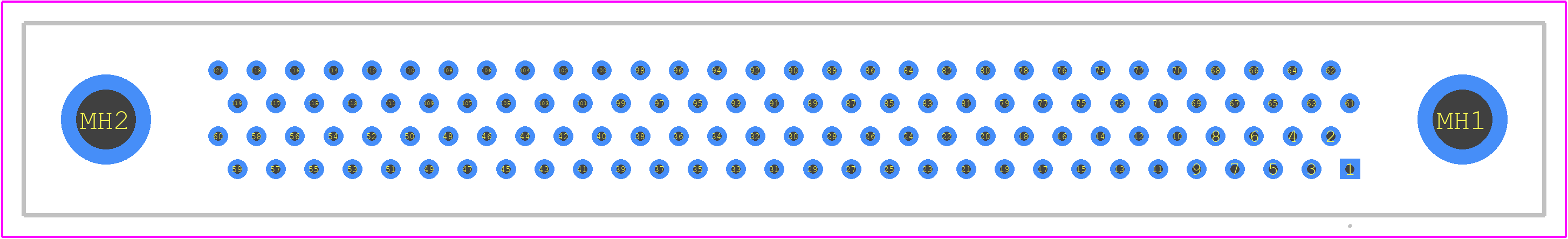

PCB Footprints
HDB-M4-120M245X - Amphenol PCB footprint - Other - Other - HDB-M4-120M245X-3
click to zoom
3D Models
HDB-M4-120M245X - Amphenol - 3D model - Other - HDB-M4-120M245X-3
click to zoom

HDB-M4-120M245X Details

  • Manufacturer Part Number:

    HDB-M4-120M245X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    9

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.07 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    120

HDB-M4-120M245X Frequently Asked Questions (FAQs)

  • The recommended torque for mating and unmating the HDB-M4-120M245X connector is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
  • Yes, the HDB-M4-120M245X connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat 2, which means it can operate in environments with vibrations up to 15 g (147 m/s²) in the frequency range of 2 Hz to 200 Hz.
  • The HDB-M4-120M245X connector is designed to operate in harsh environments. It has an operating temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and performance.
  • The HDB-M4-120M245X connector is designed to be used with 24 AWG to 20 AWG cables. The recommended cable type is a shielded or unshielded twisted pair or multi-conductor cable with a diameter of 1.5 mm to 3.5 mm (0.06 in to 0.14 in).
  • Yes, the HDB-M4-120M245X connector is part of the HDB series, which is a family of connectors designed to be compatible with each other. The HDB-M4-120M245X connector can be mated with other HDB series connectors that have the same number of contacts and keying.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HDB-M4-120M245X Overview

Use the download button to access the HDB-M4-120M245X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HDB-M, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
