HDL6M06531B footprint, schematic symbol and 3D model by ABLIC Inc.

Symbol

click to zoom

PCB Footprints

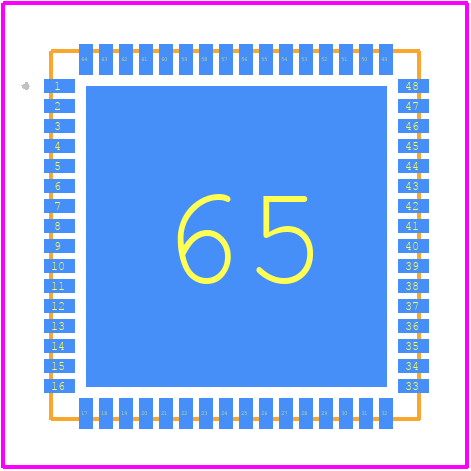

HDL6M06531B - ABLIC Inc. PCB footprint - Other - Other - QFN64

click to zoom

3D Models

HDL6M06531B - ABLIC Inc. - 3D model - Other - QFN64

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HDL6M06531B
Part Number HDL6M06531B
Manufacturer ABLIC Inc.
Pin Count 65
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN64
Released Date Mar 30, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HDL6M06531B Details

Manufacturer Part Number:
HDL6M06531B
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-64
HTS Code:
8542.39.00.60
Factory Lead Time:
30 Weeks
Manufacturer:
ABLIC Inc.
YTEOL:
7.38
Additional Feature:
ALSO REQUIRES 1.7V TO 5.25V LOGIC SUPPLY
Analog IC - Other Type:
SPDT
Input Voltage-Max:
100 V
Input Voltage-Min:
-100 V
JESD-30 Code:
S-XQCC-N64
Length:
9 mm
Number of Channels:
32
Number of Functions:
1
Number of Terminals:
64
Off-state Isolation-Nom:
25 dB
On-state Resistance Match-Nom:
0.16 Ω
On-state Resistance-Max (Ron):
10 Ω
Operating Temperature-Max:
75 °C
Output:
SEPARATE OUTPUT
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC64,.35SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.95 mm
Supply Current-Max (Isup):
3.8 mA
Supply Voltage-Max (Vsup):
5.25 V
Supply Voltage-Min (Vsup):
4.75 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switch-off Time-Max:
5000 ns
Switch-on Time-Max:
5000 ns
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
9 mm

HDL6M06531B Frequently Asked Questions (FAQs)

ABLIC recommends a 4-layer PCB with a solid ground plane and a separate power plane for the HDL6M06531B. The device should be placed near the power source, and the input and output capacitors should be placed as close to the device as possible.
To ensure stability, the output voltage of HDL6M06531B should be decoupled with a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel. Additionally, the input voltage should be filtered with a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel.
The maximum ambient temperature range for HDL6M06531B is -40°C to 125°C. However, the device should be derated for temperatures above 85°C to ensure reliable operation.
Yes, HDL6M06531B is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure reliable operation.
To troubleshoot issues with HDL6M06531B, check the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout meets the recommended guidelines. If issues persist, contact ABLIC Inc. support for further assistance.
