HDSP-331A - Avago Technologies

Description: 7.62 mm (0.3 inch) General Purpose Seven-Segment Display

Download HDSP-331A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HDSP-331A model

Email notifications will be applied after download.

Send part feedback

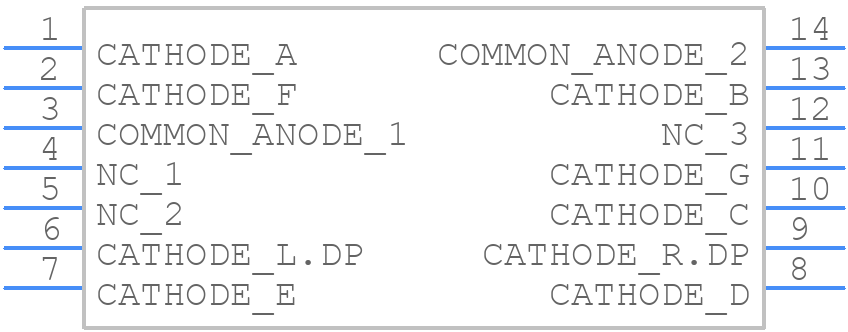

Symbol

HDSP-331A - Avago Technologies - PCB symbol

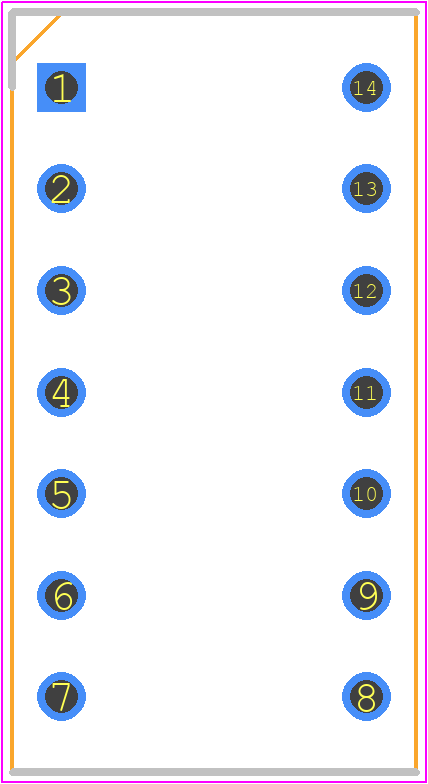

PCB Footprints

HDSP-331A - Avago Technologies PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - HDSP-331A/

Datasheet Download Datasheet
Stock & Prices Price & Stock for HDSP-331A
Part Number HDSP-331A
Manufacturer Avago Technologies
Pin Count 14
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - HDSP-331A/
Released Date Nov 3, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HDSP-331A Details

Manufacturer Part Number:
HDSP-331A
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Reach Compliance Code:
Unknown
HTS Code:
8541.40.80.00
Manufacturer:
Avago Technologies
YTEOL:
0
JESD-609 Code:
e3
Terminal Finish:
Matte Tin (Sn)

Trust Checks

Community Provided

System Verified

Community Approved

HDSP-331A Overview

Use the download button to access the HDSP-331A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HDSP-, or try a keyword search, such as LED Displays
