Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through their sales representatives. It's essential to follow these guidelines to ensure proper mounting, soldering, and thermal management.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver IC with built-in current limiting to reduce the inrush current.
The HE1AN-P-DC24V-H18 relay has an operating temperature range of -40°C to 85°C. As the temperature increases, the relay's performance may degrade, and its lifespan may be reduced. It's essential to ensure proper heat dissipation and to derate the relay's current handling capacity at higher temperatures.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider using a relay with built-in EMC features, such as a shielded coil or a low-radiation design.
The HE1AN-P-DC24V-H18 relay has a typical lifespan of 100,000 to 200,000 cycles, depending on the operating conditions. To extend the relay's lifespan, ensure proper operating conditions, avoid excessive voltage or current stress, and minimize the number of switching cycles.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HE1aN-P-DC24V-H18 Overview

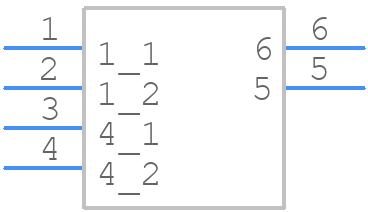

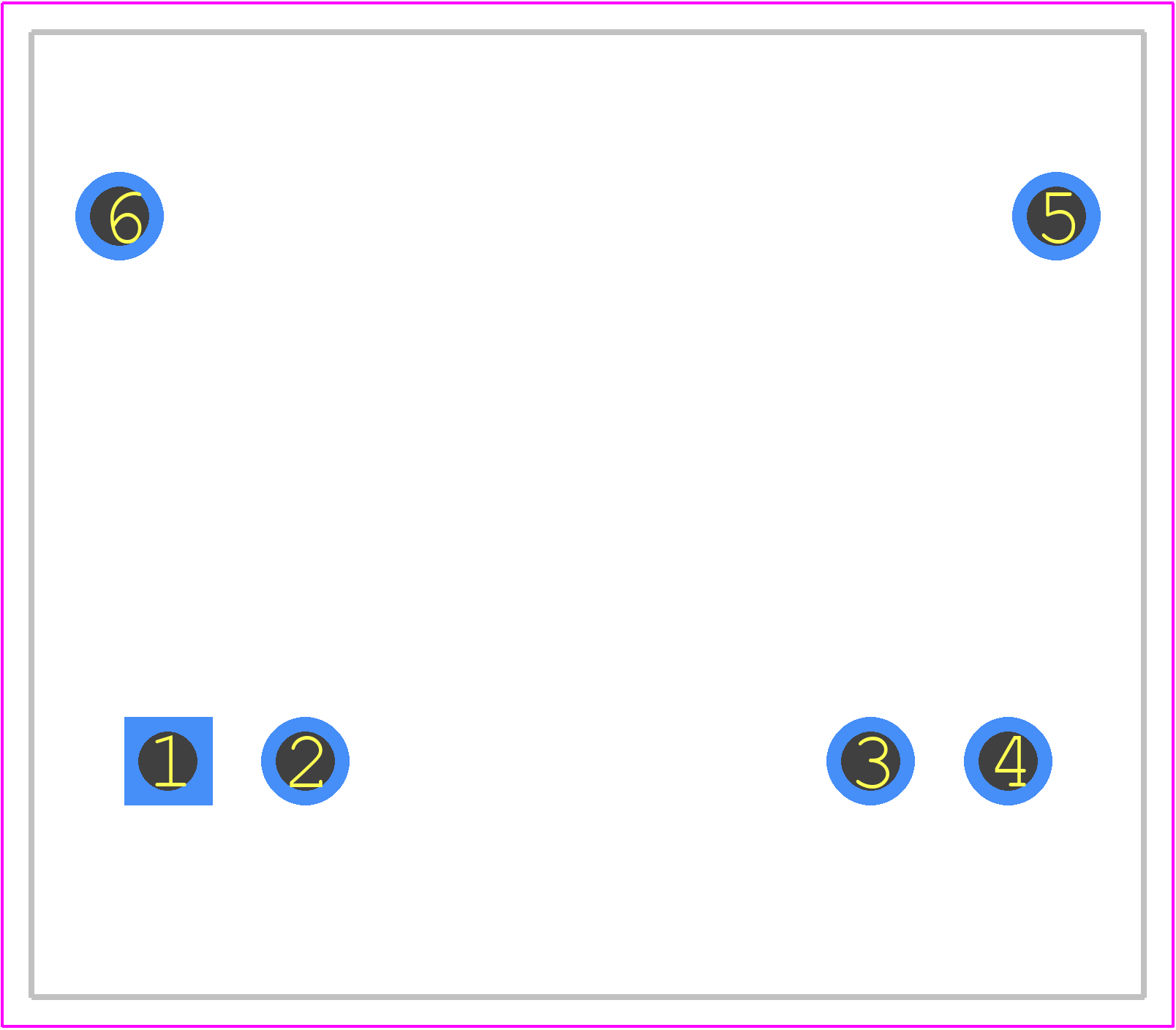

Use the download button to access the HE1aN-P-DC24V-H18 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HE1aN,
or try a keyword search, such as Power/Signal Relays
