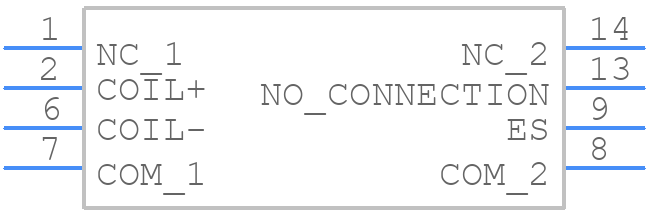

HE721B0500 - LITTELFUSE

HE721B0500 Details

• Manufacturer Part Number:

  HE721B0500

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  0

• Body Breadth:

  7.22 mm

• Body Height:

  5.5 mm

• Body Length or Diameter:

  19.05 mm

• Coil Current(DC)-Max:

  0.01 A

• Coil Operate Voltage(DC):

  3.75 V

• Coil Power:

  50 mW

• Coil Release Voltage(DC):

  0.5 V

• Coil Resistance:

  500 Ω

• Coil Voltage(DC)-Max:

  6.5 V

• Coil Voltage-Nom:

  5 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  0.35A@140VAC

• Contact Current(AC)-Max:

  0.35 A

• Contact Current(DC)-Max:

  0.5 A

• Contact (DC) Max Power Rating R Load:

  10W@200VDC

• Contact (DC) Max Rating R Load:

  0.5A@200VDC

• Contact Resistance:

  150 mΩ

• Contact Voltage(AC)-Max:

  140 V

• Contact Voltage(DC)-Max:

  200 V

• Contact/Output Supply Type:

  AC/DC

• Input Switching Control Type:

  Random

• Insulation Resistance:

  10000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  1 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BULK

• Reference Standard:

  CUL; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM B

• Relay Function:

  SPST

• Relay Type:

  DRY REED RELAY

• Release Time:

  1 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Length:

  0.002999745999491999 inch

• Termination Type:

  SOLDER
