The recommended operating temperature range for the HE722A1200 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point compatible with the device's lead finish, and avoid applying excessive heat or mechanical stress during the soldering process.
The maximum allowable voltage for the HE722A1200 is 1200V, as specified in the datasheet. Exceeding this voltage may result in device damage or failure. It's essential to ensure that the device is operated within the recommended voltage range to maintain its reliability and performance.
To prevent electrostatic discharge (ESD) damage, handle the HE722A1200 with care, and follow proper ESD protection procedures, such as using an ESD wrist strap, mat, or workstation. Ensure that the device is stored in an ESD-protected package or bag when not in use.
The typical response time of the HE722A1200 is not explicitly stated in the datasheet. However, according to Hamlin Electronics' application notes, the response time is typically in the range of 1-10 microseconds, depending on the specific application and operating conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HE722A1200 Overview

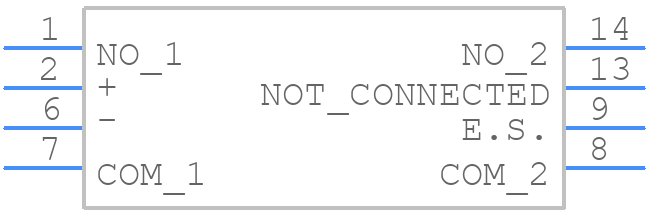

Use the download button to access the HE722A1200 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HE722,
or try a keyword search, such as Reed Relays
