The recommended operating voltage range for the HEF4001BT is 3V to 15V, although it can operate down to 2V with reduced performance.
To ensure proper power-on and power-off, Nexperia recommends applying a slow voltage ramp (typically 1-10 ms) to the VDD pin, and avoiding sudden voltage changes.
The maximum frequency of operation for the HEF4001BT is typically around 10 MHz, although this can vary depending on the specific application and operating conditions.
Unused inputs on the HEF4001BT should be tied to VDD or GND through a resistor to prevent floating inputs and reduce power consumption.
The HEF4001BT is rated for operation up to 125°C, but Nexperia recommends derating the device for extended operation above 85°C to ensure reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HEF4001BT Overview

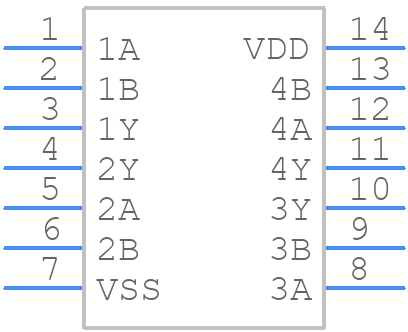

Use the download button to access the HEF4001BT schematic symbol, PCB footprint, and 3D model.
