HEF4002BT,652 - Nexperia

Description: NXP HEF4002BT,652, Dual 4-Input NOR Logic Gate, 3 → 15 V, 14-Pin SOIC

Download HEF4002BT,652 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

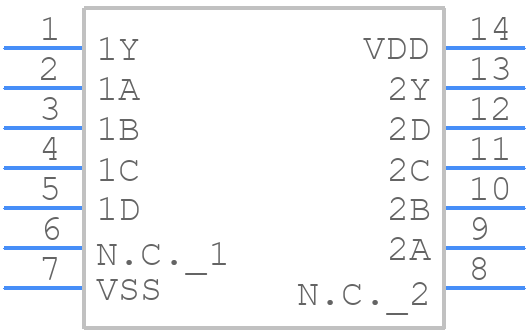

Symbol
HEF4002BT,652 - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4002BT,652 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO14
click to zoom
3D Models
HEF4002BT,652 - Nexperia - 3D model - Small Outline Packages - SO14
click to zoom

HEF4002BT,652 Details

  • Manufacturer Part Number:

    HEF4002BT,652

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT108-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1990-01-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    120 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HEF4002BT,652 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HEF4002BT,652 is 4.5V to 15.5V, as specified in the datasheet.
  • To ensure proper power-on and power-off, Nexperia recommends following a specific power-up and power-down sequence, as outlined in the datasheet. This includes ramping up the supply voltage slowly and ensuring that the input signals are stable before applying power.
  • The maximum frequency of operation for the HEF4002BT,652 is typically around 10 MHz, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • To handle thermal management, Nexperia recommends following proper PCB design guidelines, using thermal vias, and ensuring good airflow around the device. The maximum junction temperature (Tj) is 150°C, and the device should be operated within the recommended temperature range to ensure reliability.
  • The HEF4002BT,652 has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Nexperia recommends following the guidelines outlined in the datasheet and industry standards such as IEC 61000-4-2.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4002BT,652 Overview

Use the download button to access the HEF4002BT,652 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40, or try a keyword search, such as Gates
