The recommended operating voltage range for the HEF40175BT,652 is 4.5V to 15.5V, although it can operate down to 3V with reduced performance.
To ensure proper power-on and power-off, Nexperia recommends using a power-on reset (POR) circuit or a voltage supervisor to guarantee a clean power-up sequence.
The maximum clock frequency supported by the HEF40175BT,652 is 10 MHz, although it can operate at higher frequencies with reduced performance and increased power consumption.
The asynchronous reset input (MR) should be tied to VCC through a pull-up resistor (e.g., 1 kΩ) to ensure proper reset functionality. A capacitor (e.g., 100 nF) can be added in parallel to filter out noise.
The VSS pin is the substrate connection and should be connected to the most negative power supply voltage (usually GND) to prevent latch-up and ensure proper device operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HEF40175BT,652 Overview

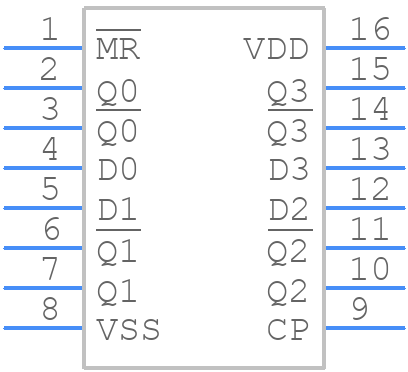

Use the download button to access the HEF40175BT,652 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40,
or try a keyword search, such as FF/Latches
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
