HEF4017BP - NXP

Description: IC, Logic, 4000, Counter, HEF4017BP

Download HEF4017BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

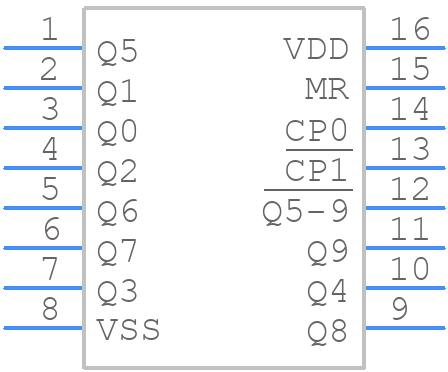

HEF4017BP - NXP - PCB symbol
click to zoom
PCB Footprints

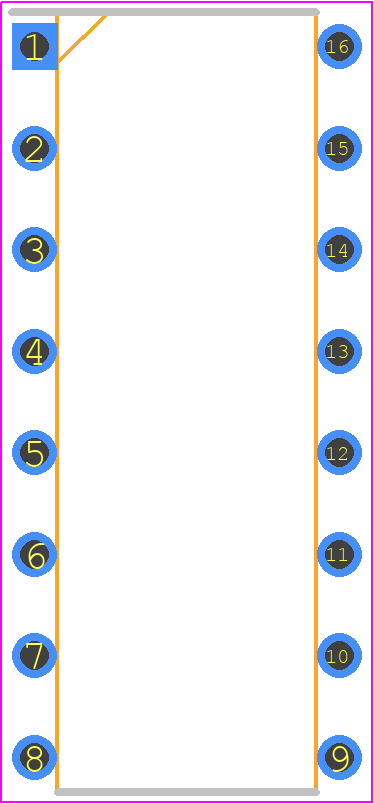

HEF4017BP - NXP PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SOT38-4-ren1
click to zoom
3D Models
HEF4017BP - NXP - 3D model - Dual-In-Line Packages - SOT38-4-ren1
click to zoom

HEF4017BP Details

  • Manufacturer Part Number:

    HEF4017BP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.30 INCH, PLASTIC, SOT38-4, DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    JOHNSON COUNTER WITH 10 DECODED OUTPUTS; TCO OUTPUT; GATED CLOCK

  • Count Direction:

    UP

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    21.6 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    RING COUNTER

  • Max Frequency@Nom-Sup:

    6000000 Hz

  • Max I(ol):

    0.004200000000000001 A

  • Mode of Operation:

    SYNCHRONOUS

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    110 ns

  • Propagation Delay (tpd):

    280 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    15 MHz

HEF4017BP Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the HEF4017BP is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing characteristics and perform simulations to ensure reliable operation at the desired clock frequency.
  • To ensure proper power supply and decoupling, connect the VCC pin to a stable 5V power supply, and decouple the power supply lines with 100nF capacitors as close to the device as possible. Additionally, use a 10uF capacitor between VCC and GND to filter out noise and ripple.
  • The recommended operating temperature range for the HEF4017BP is -40°C to +125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate the device within a narrower temperature range (e.g., 0°C to 70°C) for optimal performance.
  • The HEF4017BP is designed to operate at 5V, but it can be used in a 3.3V system with some limitations. The device's input voltage thresholds will be lower, and the output voltage levels may not be compatible with 3.3V logic. It's recommended to use a level shifter or voltage translator to ensure proper signal levels and avoid potential compatibility issues.
  • The asynchronous reset input (MR) should be connected to a pull-up resistor (e.g., 1kΩ) to ensure that the device is properly reset. When the MR input is low, the device is reset, and all outputs are set to a logic low state. It's essential to ensure that the MR input is properly debounced and synchronized with the clock signal to avoid spurious resets.
