The recommended operating voltage range for the HEF4046BT,653 is 3 V to 15 V.
To ensure the PLL is properly locked, the VCO (Voltage-Controlled Oscillator) frequency should be within the specified range, and the loop filter components should be selected according to the datasheet recommendations.
The maximum clock frequency that the HEF4046BT,653 can handle is 25 MHz.
To minimize jitter, use a high-quality clock source, ensure proper power supply decoupling, and minimize noise on the VCO input.
Yes, the HEF4046BT,653 can be used as a VCO only by bypassing the PLL and using the VCO output directly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HEF4046BT,653 Overview

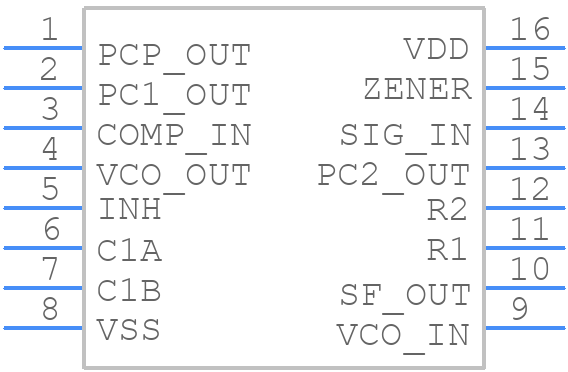

Use the download button to access the HEF4046BT,653 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
