Please enter a minimum 3 letters or numbers
Technical Content
Part Image

HEF4051BT,013 - Nexperia

Description: HEF4051B - 8-channel analog multiplexer/demultiplexer@en-us

Download HEF4051BT,013 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

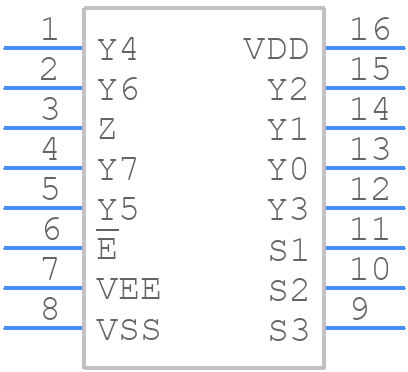

HEF4051BT,013 - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4051BT,013 - Nexperia PCB footprint - Other - Other - HEF4051BT,013-2
click to zoom
3D Models
HEF4051BT,013 - Nexperia - 3D model - Other - HEF4051BT,013-2
click to zoom

HEF4051BT,013 Details

  • Manufacturer Part Number:

    HEF4051BT,013

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT109-1

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.75

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    5 Ω

  • On-state Resistance-Max (Ron):

    175 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    230 ns

  • Switch-on Time-Max:

    80 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HEF4051BT,013 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the HEF4051BT,013 is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • To ensure proper ESD protection, it's recommended to handle the HEF4051BT,013 in an ESD-protected environment, use ESD-protected tools and equipment, and follow proper handling and storage procedures. Additionally, consider using ESD protection devices such as diodes or resistors in the circuit design.
  • The recommended power-on sequence for the HEF4051BT,013 is to apply the power supply voltage (VCC) before applying the input signals. This helps to prevent latch-up and ensures proper operation of the device.
  • To troubleshoot issues with the HEF4051BT,013, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input signals are correct and within the specified logic levels. Use a logic analyzer or oscilloscope to monitor the input and output signals, and check for any signs of latch-up or oscillation. Consult the datasheet and application notes for more troubleshooting tips.
  • The HEF4051BT,013 is rated for operation up to 125°C, but it's recommended to derate the device's performance and consider the thermal management of the system. Consult the datasheet and application notes for more information on high-temperature operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4051BT,013 Overview

Use the download button to access the HEF4051BT,013 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40, or try a keyword search, such as Multiplexers or Switches

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.

Suggested Parts

If you searched for HEF4051BT,013, you might also be interested in these parts:
Part Number
HEF4051BT,653
DFB2580
AZ850-12
54201-S0803LF
77311-102-02LF
826632-1
M20-9960646
AXK5F80537YG
GBPC2501W

Parts related to HEF4051BT,013

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

HEF4051BT,013 Alternates

Showing results

Image Part Number Model
Part Image 933372940653 Nexperia

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16
Part Image CD4051BM96G4 Texas Instruments

Single-Ended Multiplexer, 1 Func, 1 Channel, CMOS, PDSO16
Part Image CD4051BMTG4 Texas Instruments

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDSO16
Part Image CD4051BM96G3 Texas Instruments

Single-Ended Multiplexer, 1 Func, 1 Channel, CMOS, PDSO16
Part Image CD4051BM/883 National Semiconductor Corporation

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16
For a full list of alternate parts for HEF4051BT,013, check out Findchips.com
