The recommended operating voltage range for HEF4069UBTT,112 is 3V to 15V, although it can operate down to 2V with reduced performance.
To minimize noise and oscillations, ensure proper decoupling of the power supply lines, use a bypass capacitor between VCC and GND, and keep the output load impedance high enough to prevent oscillations.
Yes, the HEF4069UBTT,112 can be used as a level shifter, but it's not recommended as it's not designed for this purpose. Instead, use a dedicated level shifter IC for reliable operation.
The maximum frequency of operation for the HEF4069UBTT,112 depends on the supply voltage and load capacitance. Typically, it can operate up to 10 MHz at 5V and 5 pF load capacitance.
Ensure good thermal conduction by mounting the device on a PCB with a thermal pad, and provide adequate airflow or heat sinking to keep the junction temperature below 150°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HEF4069UBTT,112 Overview

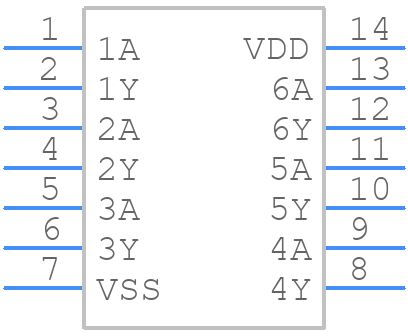

Use the download button to access the HEF4069UBTT,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40,
or try a keyword search, such as Gates
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
