The recommended operating voltage range for the HEF4081BT-Q100J is 4.5 V to 15 V.
The HEF4081BT-Q100J has a propagation delay time of 10 ns (typical) and a transition time of 5 ns (typical), making it suitable for moderate-frequency applications. However, for high-frequency applications, a faster logic family like the 74AHC or 74AHCT series may be more suitable.
To ensure the HEF4081BT-Q100J is properly powered, connect the VCC pin to a stable power supply voltage between 4.5 V and 15 V, and the GND pin to a reliable ground connection. Decouple the power supply with a 0.1 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel.
The HEF4081BT-Q100J is specified to operate from 4.5 V to 15 V, but it may still function at 3.3 V with reduced performance. However, Nexperia does not guarantee the device's performance at 3.3 V, and it is not recommended for new designs. For 3.3 V systems, consider using a 3.3 V-tolerant logic family like the 74LVC or 74LVCH series.
Unused inputs on the HEF4081BT-Q100J should be connected to a fixed logic level (VCC or GND) to prevent floating inputs, which can cause unpredictable behavior. Never leave unused inputs unconnected.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HEF4081BT-Q100J Overview

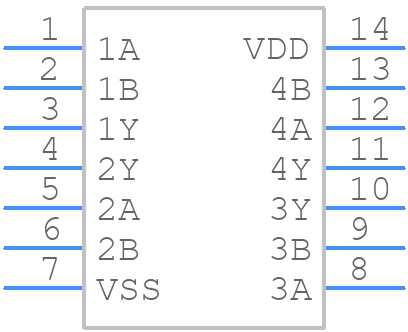

Use the download button to access the HEF4081BT-Q100J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40,
or try a keyword search, such as Gates
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
