HEF4082BT,652 - Nexperia

Description: HEF4082B - Dual 4-input AND gate@en-us

Download HEF4082BT,652 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

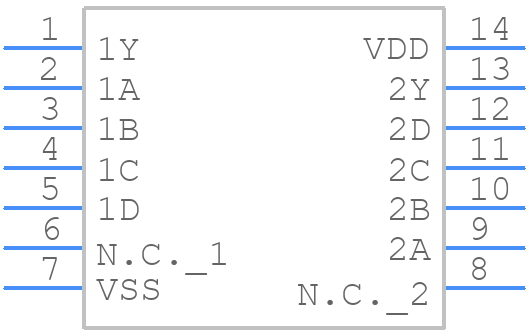

HEF4082BT,652 - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4082BT,652 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO14
click to zoom
3D Models
HEF4082BT,652 - Nexperia - 3D model - Small Outline Packages - SO14
click to zoom

HEF4082BT,652 Details

  • Manufacturer Part Number:

    HEF4082BT,652

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOT-108-1, SO-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT108-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1990-01-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    125 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HEF4082BT,652 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for HEF4082BT,652 is 4.5V to 15V, although it can operate down to 3V with reduced performance.
  • To ensure correct pinout and orientation, refer to the package outline drawing in the datasheet and pay attention to the notch or mark on the package, which indicates pin 1. Also, double-check the pinout diagram in the datasheet to ensure correct connections.
  • The maximum frequency of operation for HEF4082BT,652 is typically around 10MHz, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific design.
  • To handle thermal considerations, ensure good thermal conduction between the device and the PCB, use a heat sink if necessary, and follow the recommended thermal design guidelines in the datasheet. Also, be aware of the maximum junction temperature (Tj) rating of 150°C and ensure that the device does not exceed this temperature during operation.
  • Yes, to minimize noise and ensure proper operation, it's recommended to follow good layout practices such as keeping the input and output traces separate, using a solid ground plane, and minimizing trace lengths and loops. Additionally, ensure that the power supply decoupling capacitors are placed close to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4082BT,652 Overview

Use the download button to access the HEF4082BT,652 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40, or try a keyword search, such as Gates

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
