HEF4093BP - NXP

Description: Logic Circuit, Quad 2-Input NAND, CMOS, 14 Pin, Plastic, DIP

Download HEF4093BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

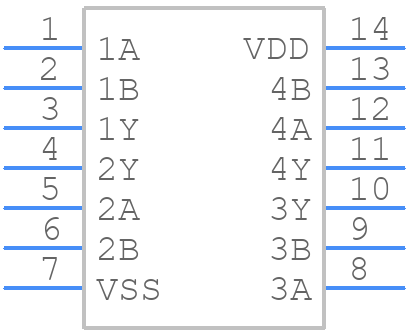

HEF4093BP - NXP - PCB symbol
click to zoom
PCB Footprints

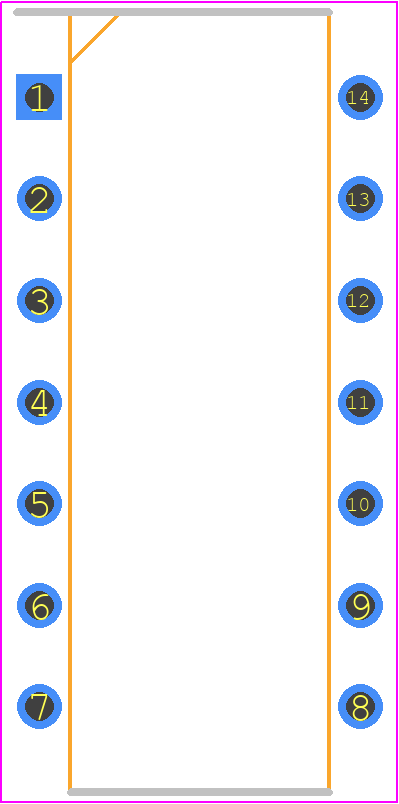

HEF4093BP - NXP PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SOT27-1 (DIP14)
click to zoom
3D Models
HEF4093BP - NXP - 3D model - Dual-In-Line Packages - SOT27-1 (DIP14)
click to zoom

HEF4093BP Details

  • Manufacturer Part Number:

    HEF4093BP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MO-001

  • Package Description:

    0.300 INCH, PLASTIC, MO-001, SC501-14, SOT27-1, DIP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.025 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NAND GATE

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    BULK

  • Prop. Delay@Nom-Sup:

    185 ns

  • Propagation Delay (tpd):

    185 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    4.2 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

HEF4093BP Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the HEF4093BP is typically around 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and decouple it with a capacitor to ground. Also, ensure that the input signals are within the recommended voltage range and that the output loads are within the specified current limits.
  • The maximum output current that the HEF4093BP can sink or source is typically around 20 mA, but it can vary depending on the specific application and operating conditions.
  • The Schmitt trigger inputs on the HEF4093BP are designed to provide hysteresis, which helps to reduce noise and oscillations. To handle them properly, ensure that the input signals are within the recommended voltage range and that the input rise and fall times are within the specified limits.
  • The power consumption of the HEF4093BP depends on the operating frequency, voltage, and load conditions. Typically, the quiescent current is around 1-2 mA, but it can vary depending on the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4093BP Overview

Use the download button to access the HEF4093BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF40, or try a keyword search, such as Gates
