HEF4528BT-Q100J - Nexperia

Description: HEF4528B-Q100 - Dual monostable multivibrator@en-us

Download HEF4528BT-Q100J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

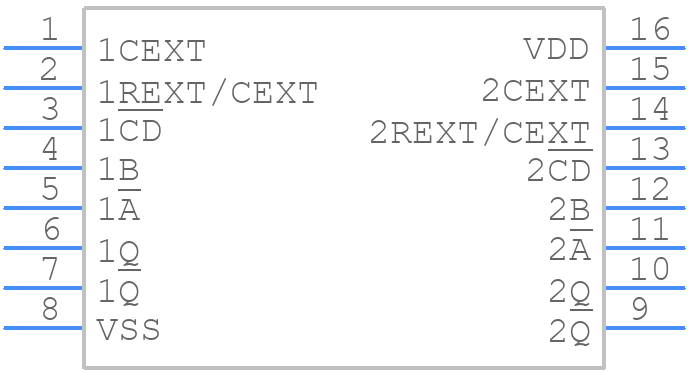

Symbol
HEF4528BT-Q100J - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4528BT-Q100J - Nexperia PCB footprint - Other - Other - HEF4528BT-Q100J-3
click to zoom
3D Models
HEF4528BT-Q100J - Nexperia - 3D model - Other - HEF4528BT-Q100J-3
click to zoom

HEF4528BT-Q100J Details

  • Manufacturer Part Number:

    HEF4528BT-Q100J

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT109-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    305 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

HEF4528BT-Q100J Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HEF4528BT-Q100J is 4.5 V to 15.5 V, as specified in the datasheet. However, it's recommended to operate the device within the range of 5 V to 12 V for optimal performance and reliability.
  • To ensure proper power-up and initialization, it's recommended to follow a slow power-up ramp (typically 1 ms/V) and to hold the VCC pin at a voltage below 0.5 V for at least 100 ns before applying the operating voltage. Additionally, the device should be reset by pulling the RESET pin low for at least 100 ns after power-up.
  • The maximum frequency of operation for the HEF4528BT-Q100J is 10 MHz, as specified in the datasheet. However, the actual operating frequency may be limited by the specific application and the quality of the clock signal.
  • The HEF4528BT-Q100J has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's recommended to keep the device junction temperature below 125°C. This can be achieved by using a heat sink, reducing the power consumption, and ensuring good airflow around the device.
  • Yes, it's recommended to follow good layout and routing practices to minimize noise, crosstalk, and electromagnetic interference (EMI). Keep the signal traces short and away from power and ground planes, and use decoupling capacitors to filter the power supply. Additionally, ensure that the device is placed in a way that minimizes thermal resistance and allows for good heat dissipation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4528BT-Q100J Overview

Use the download button to access the HEF4528BT-Q100J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF45, or try a keyword search, such as Prescaler/Multivibrators

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
