HEF4541BT-Q100Y - Nexperia

Description: HEF4541B-Q100 - Programmable timer@en-us

Download HEF4541BT-Q100Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

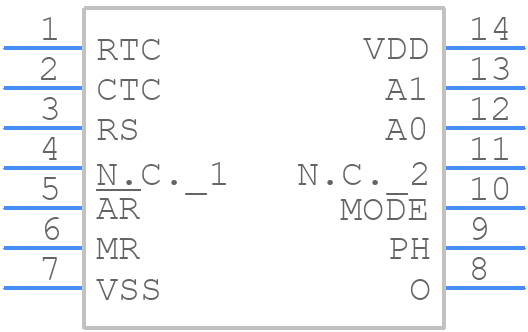

HEF4541BT-Q100Y - Nexperia - PCB symbol
click to zoom
PCB Footprints
HEF4541BT-Q100Y - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO14 (SOT108-1)
click to zoom
3D Models
HEF4541BT-Q100Y - Nexperia - 3D model - Small Outline Packages - SO14 (SOT108-1)
click to zoom

HEF4541BT-Q100Y Details

  • Manufacturer Part Number:

    HEF4541BT-Q100Y

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT108-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    PARALLEL, DIRECT ADDRESS

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Timers:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE

HEF4541BT-Q100Y Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the HEF4541BT-Q100Y is 4.5 V to 15 V.
  • To ensure proper power-on and power-off, it is recommended to use a power-on reset circuit and a power-down circuit to prevent unwanted oscillations and ensure a clean shutdown.
  • The maximum frequency of operation for the HEF4541BT-Q100Y is 10 MHz.
  • To handle thermal considerations, ensure good heat dissipation by using a heat sink or a thermally conductive material, and avoid operating the device at high temperatures (above 125°C) for extended periods.
  • For optimal performance, use a symmetrical layout and routing, keep the input and output traces short and away from each other, and use a ground plane to reduce noise and electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HEF4541BT-Q100Y Overview

Use the download button to access the HEF4541BT-Q100Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HEF45, or try a keyword search, such as Timers or RTCs

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
