HF140FF/005-2ZTF - Hongfa

Description: Hongfa Europe GMBH DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 10 A, 10 A

Download HF140FF/005-2ZTF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

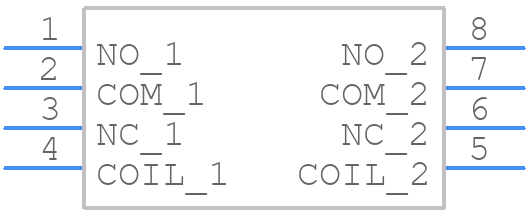

HF140FF/005-2ZTF - Hongfa - PCB symbol
click to zoom
PCB Footprints

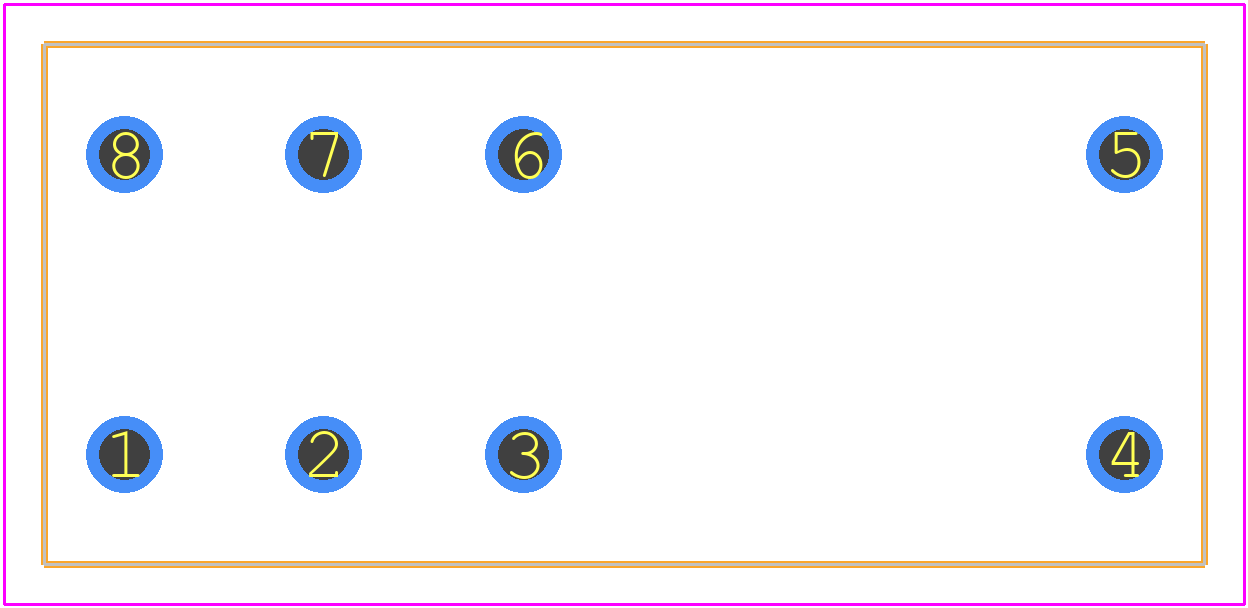

HF140FF/005-2ZTF - Hongfa PCB footprint - Other - Other - HF140FF/005-2ZTF-2
click to zoom
3D Models
HF140FF/005-2ZTF - Hongfa - 3D model - Other - HF140FF/005-2ZTF-2
click to zoom

HF140FF/005-2ZTF Details

  • Manufacturer Part Number:

    HF140FF/005-2ZTF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    Xiamen Hongfa Electroacoustic Co.,Ltd.

  • YTEOL:

    6.79

  • Body Breadth:

    13 mm

  • Body Height:

    26.3 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(DC)-Max:

    0.106 A

  • Coil Operate Voltage(DC):

    3.75 V

  • Coil Power:

    530 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    47 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    10A@250VAC

  • Contact Current(AC)-Max:

    10 A

  • Contact Current(DC)-Max:

    10 A

  • Contact (DC) Max Rating R Load:

    10A@30VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Physical Dimension:

    29mm x 13mm x 26.3mm

  • Reference Standard:

    CQC; CUL; TUV; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5 ms

  • Sealing:

    DUST PROOF

  • Surface Mount:

    NO

  • Terminal Finish:

    GOLD

  • Termination Type:

    SOLDER

HF140FF/005-2ZTF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be obtained from the manufacturer or through a custom design request. A well-designed PCB layout can help minimize electromagnetic interference and ensure optimal performance.
  • While the datasheet may provide some information on operating temperature and humidity ranges, engineers may want to know more about the buzzer's performance in extreme environments. The manufacturer can provide additional information on the buzzer's reliability and performance in such conditions.
  • The datasheet may provide some information on the recommended drive voltage, but engineers may want to know more about the optimal drive circuit and voltage for their specific application. The manufacturer can provide guidance on the recommended drive circuit and voltage for optimal sound quality and efficiency.
  • Engineers may want to know about any specific safety considerations or certifications that need to be met when using the HF140FF/005-2ZTF buzzer, such as RoHS, CE, or UL compliance. The manufacturer can provide information on any relevant certifications and safety considerations.
  • Engineers may want to know about the typical lead time and minimum order quantity (MOQ) for the HF140FF/005-2ZTF buzzer, which may not be specified in the datasheet. The manufacturer can provide information on lead times and MOQs for different quantities and production schedules.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HF140FF/005-2ZTF Overview

Use the download button to access the HF140FF/005-2ZTF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HF140, or try a keyword search, such as Power/Signal Relays
