HF140FF/012-2ZS3 - Hongfa

HF140FF/012-2ZS3 Details

• Manufacturer Part Number:

  HF140FF/012-2ZS3

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Xiamen Hongfa Electroacoustic Co.,Ltd.

• YTEOL:

  6.79

• Body Breadth:

  13 mm

• Body Height:

  26.3 mm

• Body Length or Diameter:

  29 mm

• Coil Current(DC)-Max:

  0.044 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  530 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  275 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  10A@250VAC

• Contact Current(AC)-Max:

  10 A

• Contact Current(DC)-Max:

  10 A

• Contact (DC) Max Rating R Load:

  10A@30VDC

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• JESD-609 Code:

  e4

• Mounting Feature:

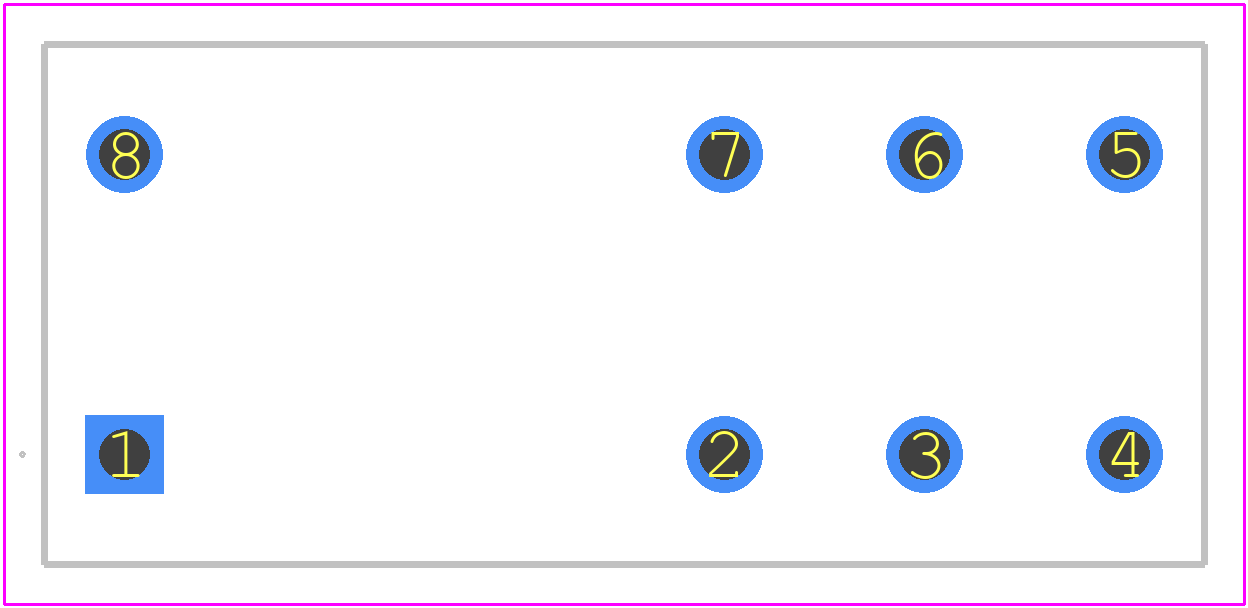

  THROUGH HOLE-STRAIGHT

• Operate Time:

  15 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  29mm x 13mm x 26.3mm

• Reference Standard:

  CQC; CUL; TUV; UL

• Relay Action:

  MOMENTARY

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Surface Mount:

  NO

• Terminal Finish:

  GOLD

• Termination Type:

  SOLDER
