HF170F/12-2H1DTF - Hongfa

HF170F/12-2H1DTF Details

• Manufacturer Part Number:

  HF170F/12-2H1DTF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Manufacturer:

  Xiamen Hongfa Electroacoustic Co.,Ltd.

• YTEOL:

  6.87

• Additional Feature:

  Ratings are as per NO and NC rating is 1A/277VAC, 1A/30VDC, Contact Material for NC is SILVER NICKEL

• Body Breadth:

  30 mm

• Body Height:

  40 mm

• Body Length or Diameter:

  36 mm

• Coil Current(DC)-Max:

  0.157 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  1880 mW

• Coil Release Voltage(DC):

  0.6 V

• Coil Resistance:

  76.6 Ω

• Coil Voltage(DC)-Max:

  13.2 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  11080VA@480VAC

• Contact (AC) Max Rating R Load:

  40A@480VAC

• Contact Current(AC)-Max:

  40 A

• Contact Resistance:

  10 mΩ

• Contact Voltage(AC)-Max:

  480 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

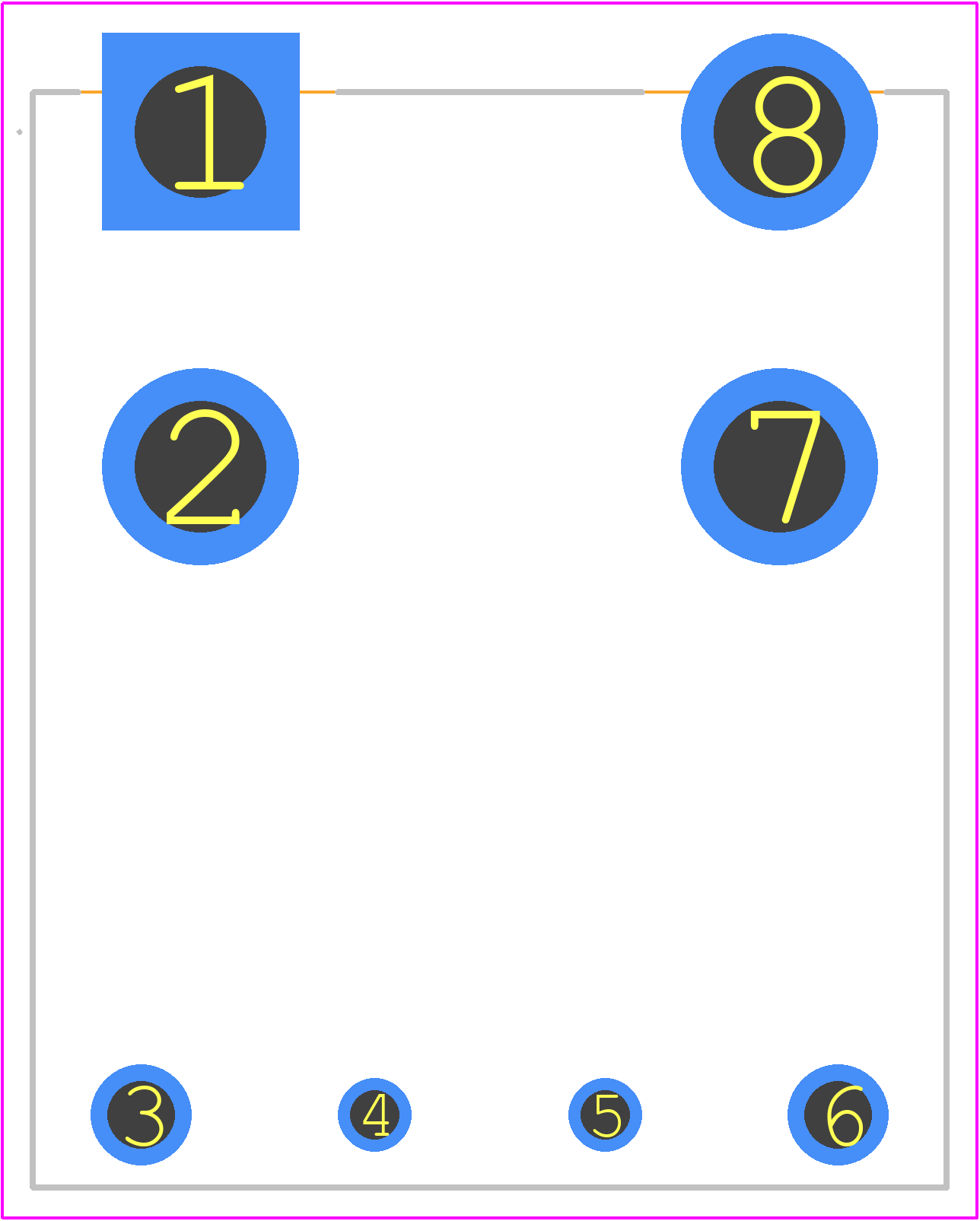

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  30 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  36mm x 30mm x 40mm

• Reference Standard:

  CQC; CUL; EN; TUV; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM A, 1 FORM B

• Relay Function:

  3PST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.004000508001016002 inch

• Termination Type:

  SOLDER
