The recommended torque value for the HF303 connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw-locking type, and 1.5 Nm to 3.5 Nm (13.3 in-lbs to 29.5 in-lbs) for the screw-clamp type.
Yes, the HF303 connector is designed to withstand high-vibration applications. It has a ruggedized design and a secure screw-locking or screw-clamp mechanism that ensures reliable connections even in harsh environments.
Yes, the HF303 connector is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in outdoor environments.
The HF303 connector is rated for operation up to 125°C (257°F). However, it's recommended to derate the current rating at higher temperatures to ensure reliable operation.
The HF303 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HF303 Overview

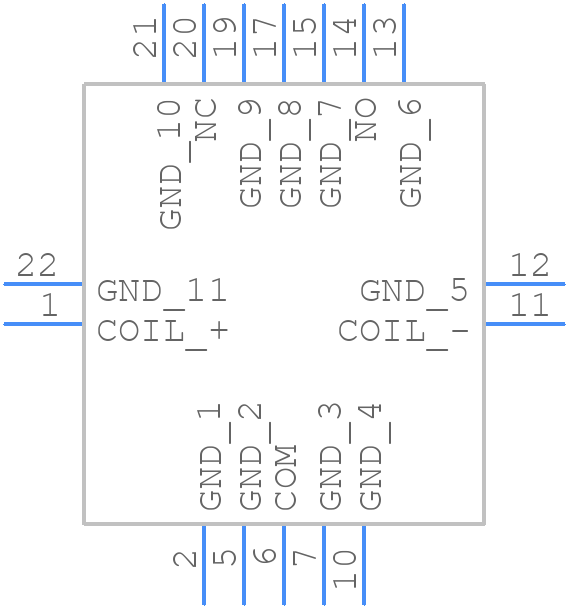

Use the download button to access the HF303 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as RF Relays
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
