HF500GP-30 - Monolithic Power Systems (MPS)

Description: AC/DC Converters Fixed-Frequency, Flyback Regulator with Multi-Mode Control and Over-Power Line Compensation

Download HF500GP-30 Model

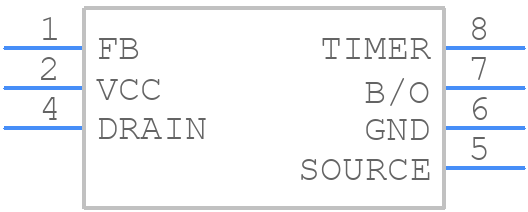

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HF500GP-30 - Monolithic Power Systems (MPS) PCB footprint - Other - Other - PDIP8-7B
click to zoom
3D Models
HF500GP-30 - Monolithic Power Systems (MPS)  - 3D model - Other - PDIP8-7B
click to zoom

HF500GP-30 Details

  • Manufacturer Part Number:

    HF500GP-30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8/7

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • Additional Feature:

    CONFIGURABLE AS FLYBACK CONVERTER

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    16 V

  • JESD-30 Code:

    R-PDIP-T7

  • JESD-609 Code:

    e3

  • Length:

    9.575 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    68 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

HF500GP-30 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths.
  • Monitor the input voltage, output current, and junction temperature to ensure they are within the specified limits. Use the thermal resistance (RθJA) to estimate the junction temperature.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10-22 μF is recommended. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 25 V.
  • Choose an output capacitor with a low ESR and a value of 10-47 μF. The capacitor should be rated for the output voltage and have a temperature range that matches the application.
  • The EN (enable) pin is used to turn the regulator on or off. Connect the EN pin to VIN to enable the regulator, or connect it to GND to disable it. A pull-up resistor may be required to ensure the regulator turns on.
