A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close to each other, and the PCB should be designed to minimize electromagnetic interference (EMI).
To ensure reliable data transmission over long distances, use a high-quality fiber optic cable, ensure proper termination and connectorization, and implement error correction mechanisms such as checksums or CRCs in the transmission protocol.
The maximum cable length supported by the HFBR-1404Z is dependent on the type of fiber optic cable used and the specific application. However, as a general guideline, the HFBR-1404Z can support cable lengths of up to 10 km using single-mode fiber optic cables.
To troubleshoot issues with the HFBR-1404Z, check the fiber optic cable for damage or contamination, ensure proper connectorization and termination, verify the transmitter and receiver are properly configured, and use an oscilloscope to verify the signal integrity.
The HFBR-1404Z is designed to operate in a wide range of temperatures (-40°C to 85°C) and can withstand moderate levels of vibration. However, for extreme environments, additional testing and validation may be required to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-1404Z Overview

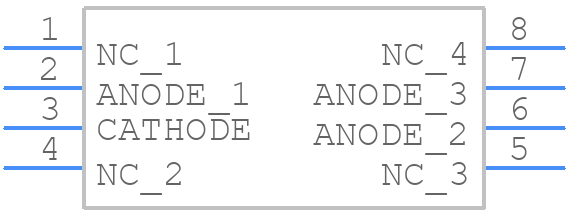

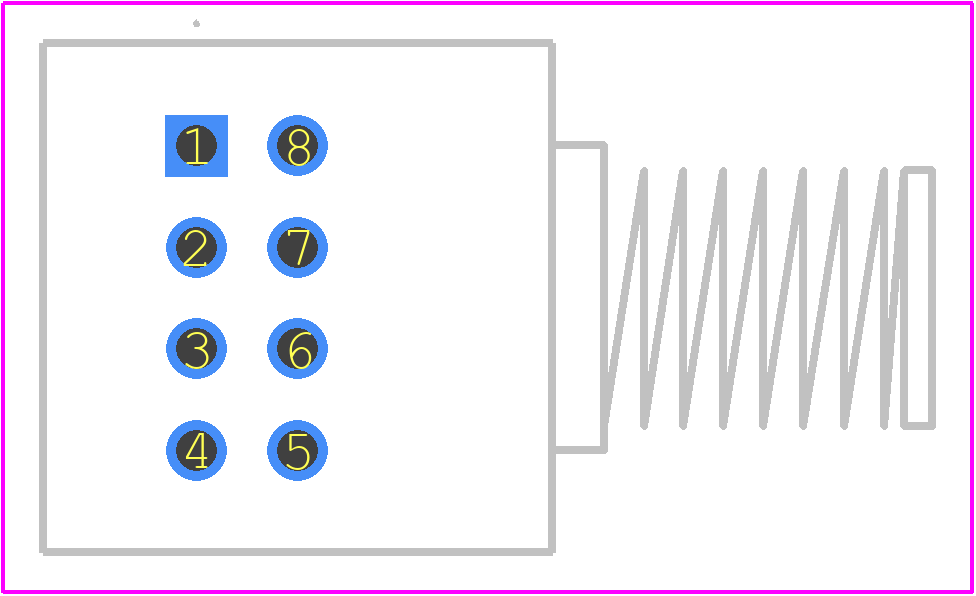

Use the download button to access the HFBR-1404Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFBR-,
or try a keyword search, such as Fiber Optic Transmitters
