A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close to each other, and the PCB should be designed to minimize electromagnetic interference (EMI).
To ensure reliable data transmission over long distances, use a high-quality cable with low attenuation, minimize electromagnetic interference (EMI) and radio-frequency interference (RFI), and consider using repeaters or amplifiers to boost the signal.
The maximum cable length supported by the HFBR-1414TZ is dependent on the cable type and quality, but generally, it can support cable lengths up to 40 km (24.9 miles) at a data rate of 1 Gb/s.
To troubleshoot issues with the HFBR-1414TZ, check the power supply, ensure proper termination, verify the cable connection and quality, and use an oscilloscope to check the signal integrity.
The HFBR-1414TZ is designed to operate in a temperature range of -40°C to 85°C and humidity up to 95% RH, but it's recommended to consult the datasheet and application notes for specific guidance on using the device in harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-1414TZ Overview

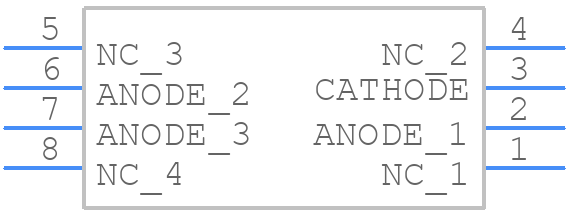

Use the download button to access the HFBR-1414TZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HFBR-,
or try a keyword search, such as Fiber Optic Transmitters
