OPTICAL OUTPUT POWER FOR THIS POF FIBER TYPE: 0.489MW
Body Breadth:
12.5 mm
Body Height:
10.2 mm
Body Length or Diameter:
16.1 mm
Connection Type:
SMA CONNECTOR
Data Rate:
10 Mbps
Emitter/Detector Type:
LED
Fiber Optic Device Type:
TRANSMITTER
Fiber Type:
200, HCS, POF
JESD-609 Code:
e3
Mounting Feature:
PANEL MOUNT, THROUGH HOLE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Operating Wavelength-Max:
660 nm
Operating Wavelength-Min:
640 nm
Operating Wavelength-Nom:
650 nm
Optical Power Output-Nom:
0.053 mW
Package Style:
DIP
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Terminal Finish:
Tin (Sn)
Transmission Type:
DIGITAL
HFBR-1505CZ Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The transmitter and receiver should be placed close together, and the PCB should be designed to minimize electromagnetic interference (EMI).
To ensure reliable data transmission over long distances, use a high-quality cable with low attenuation, minimize electromagnetic interference (EMI) and radio-frequency interference (RFI), and consider using repeaters or amplifiers to boost the signal.
The maximum cable length supported by the HFBR-1505CZ is dependent on the specific application and the type of cable used. However, as a general guideline, the maximum cable length is typically around 40 km for a 9/125 μm single-mode fiber optic cable.
To troubleshoot issues with the HFBR-1505CZ, check the optical power levels, ensure proper cable connections, and verify that the transmitter and receiver are properly configured. Also, check for electromagnetic interference (EMI) and radio-frequency interference (RFI) in the environment.
The HFBR-1505CZ is designed to operate in a temperature range of -40°C to 85°C and a humidity range of 5% to 95%. However, for harsh environments, it is recommended to use a customized or ruggedized version of the device, and to consult with the manufacturer for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HFBR-1505CZ Overview

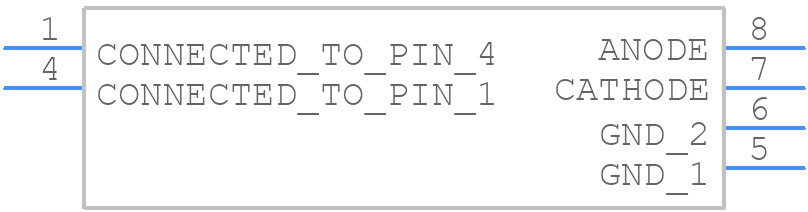

Use the download button to access the HFBR-1505CZ schematic symbol and PCB footprint.
